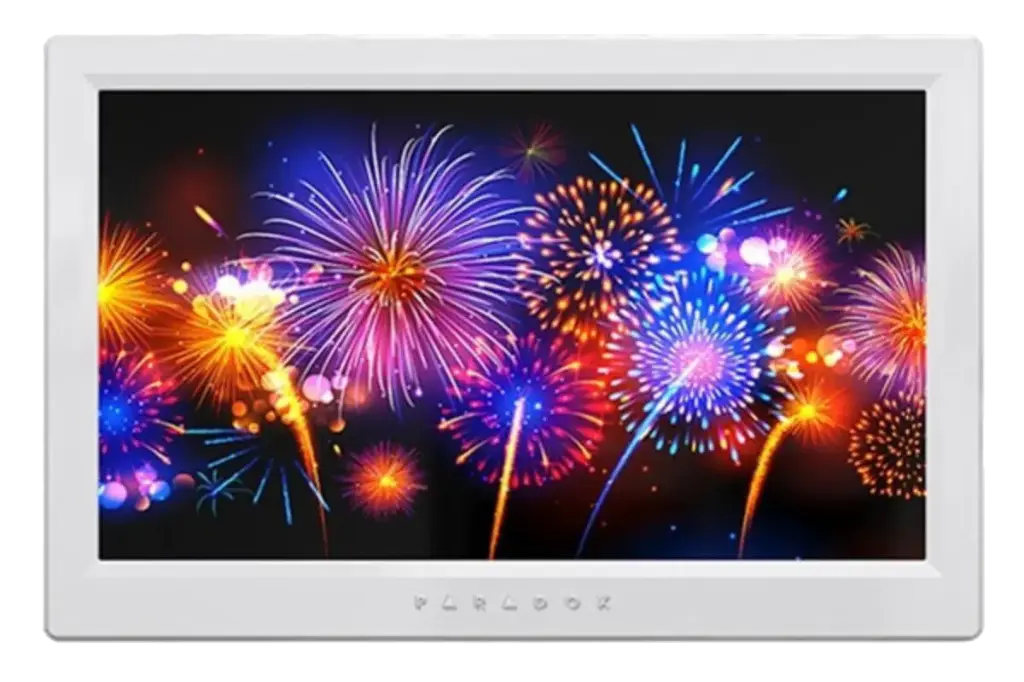

TM70

A sleek 7-inch full-colour touchscreen keypad for the EVO-192 platform, offering intuitive control, real-time system status, and a modern interface to enhance any intrusion security installation.

🔑 Key Features

• Large 7-inch vivid colour display for clear, easy-to-read status information

• Touchscreen navigation for intuitive operation and rapid access to functions

• Displays floor plans, system zones, and event logs

• Supports up to 32 floor plans for visual monitoring of system status

• Customisable labels for zones, areas, users, and outputs

• Built-in SD card slot for firmware upgrades and image storage

🛠 Technical Specifications

• Model: TM70

• Display: 7-inch full-colour LCD touchscreen

• Resolution: 800 × 480 pixels

• Compatibility: EVO-192 series

• Power Requirements: 12VDC nominal

• Current Consumption: 300mA (typical)

• Operating Temperature: 0°C to 50°C

• Dimensions: 195 × 125 × 23mm

• Firmware Upgrade: Via SD card slot

🛠️ Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your TM70 keypad within your Paradox system. Installation includes:

• On-site mounting and wiring

• Integration with your existing Paradox platform

• Custom programming of zones, areas, and outputs

• Full operational testing and client training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use solution, or add the Alarm Installation Service at checkout for 10% off when purchased with a kit.

🎯 Best Used For

• Residential, commercial, or industrial security systems needing a modern control interface

• Users preferring touchscreen navigation over traditional keypads

• Installations where a visual overview of zones and system status is essential

• Projects requiring easy access to logs, events, and custom zone labelling
