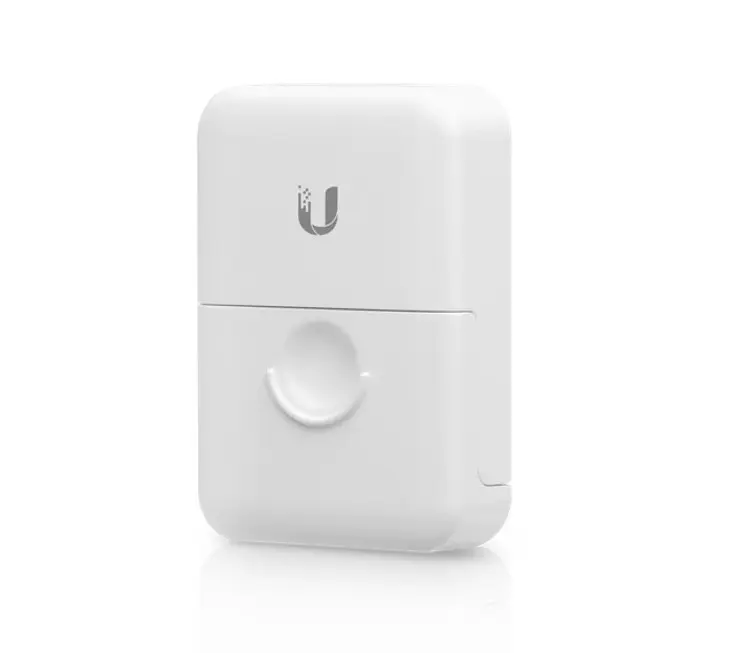

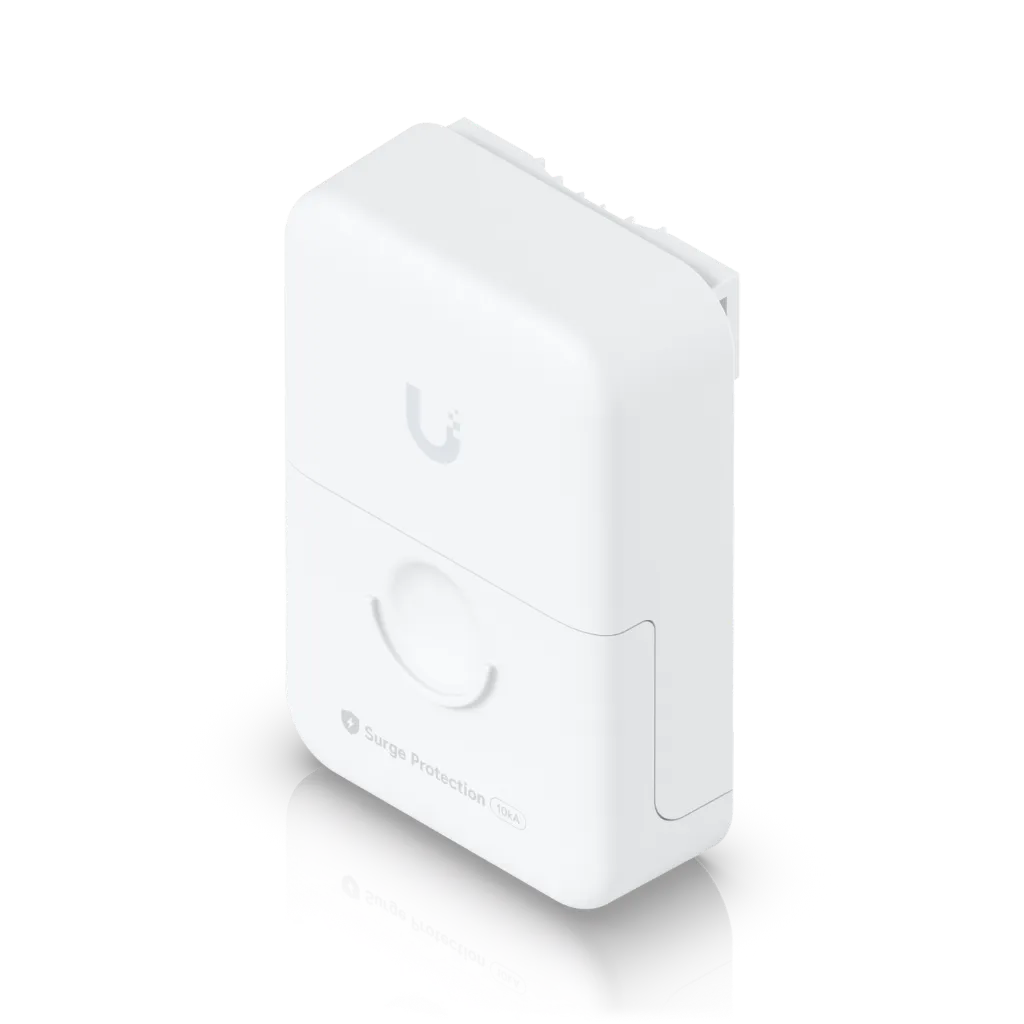

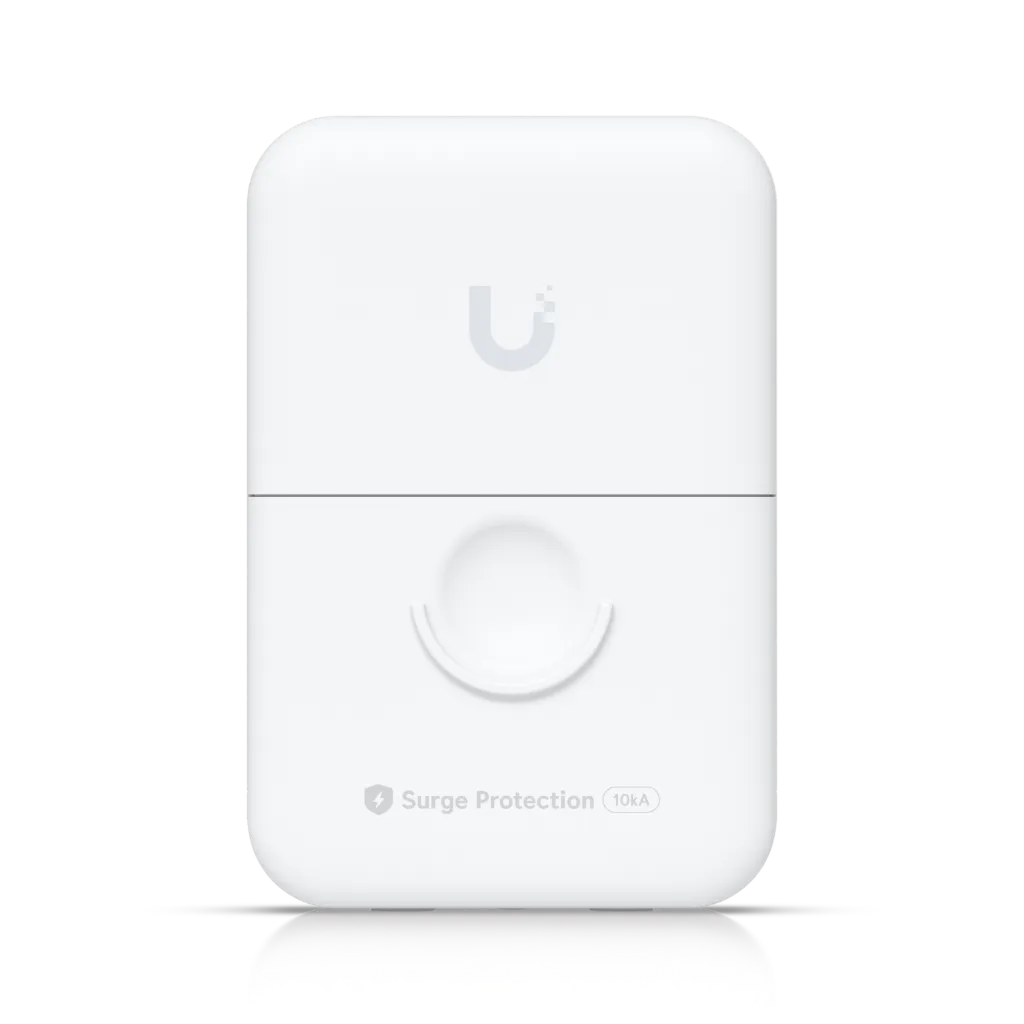

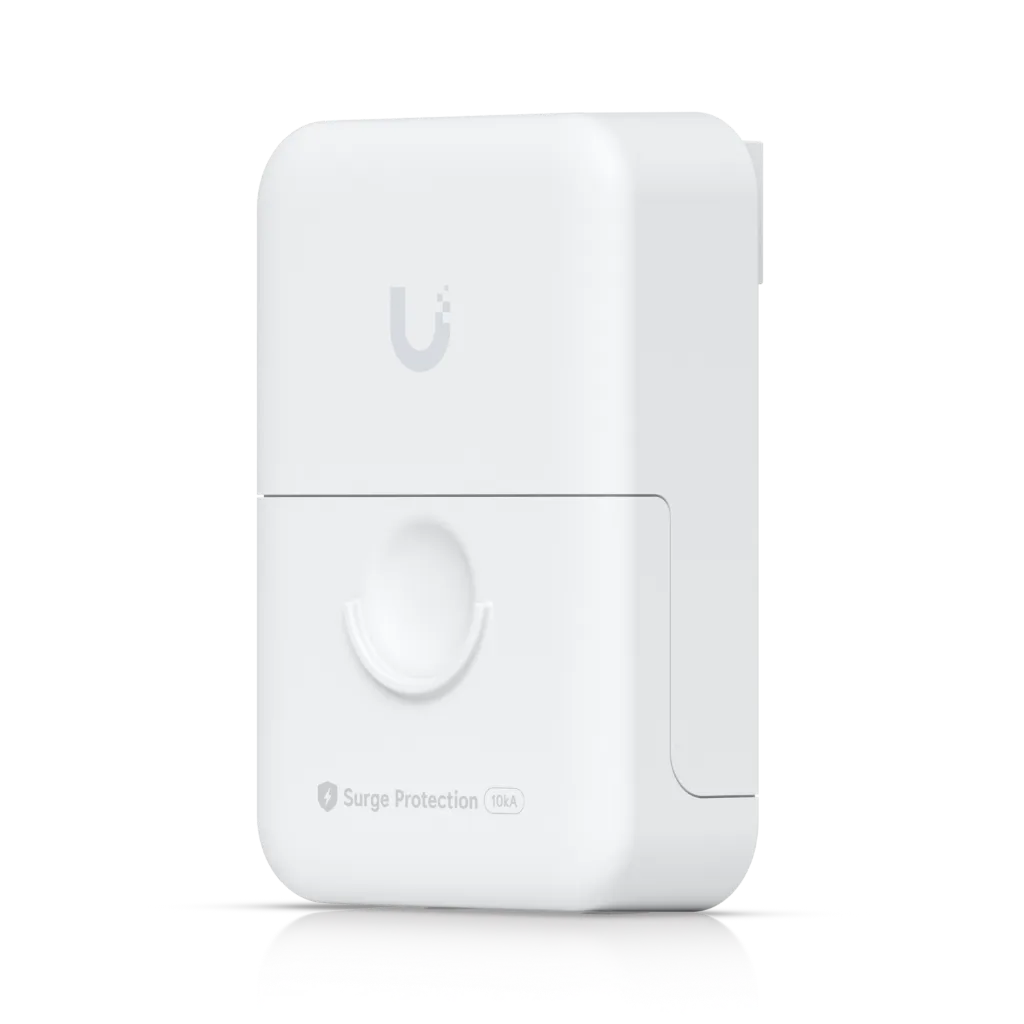

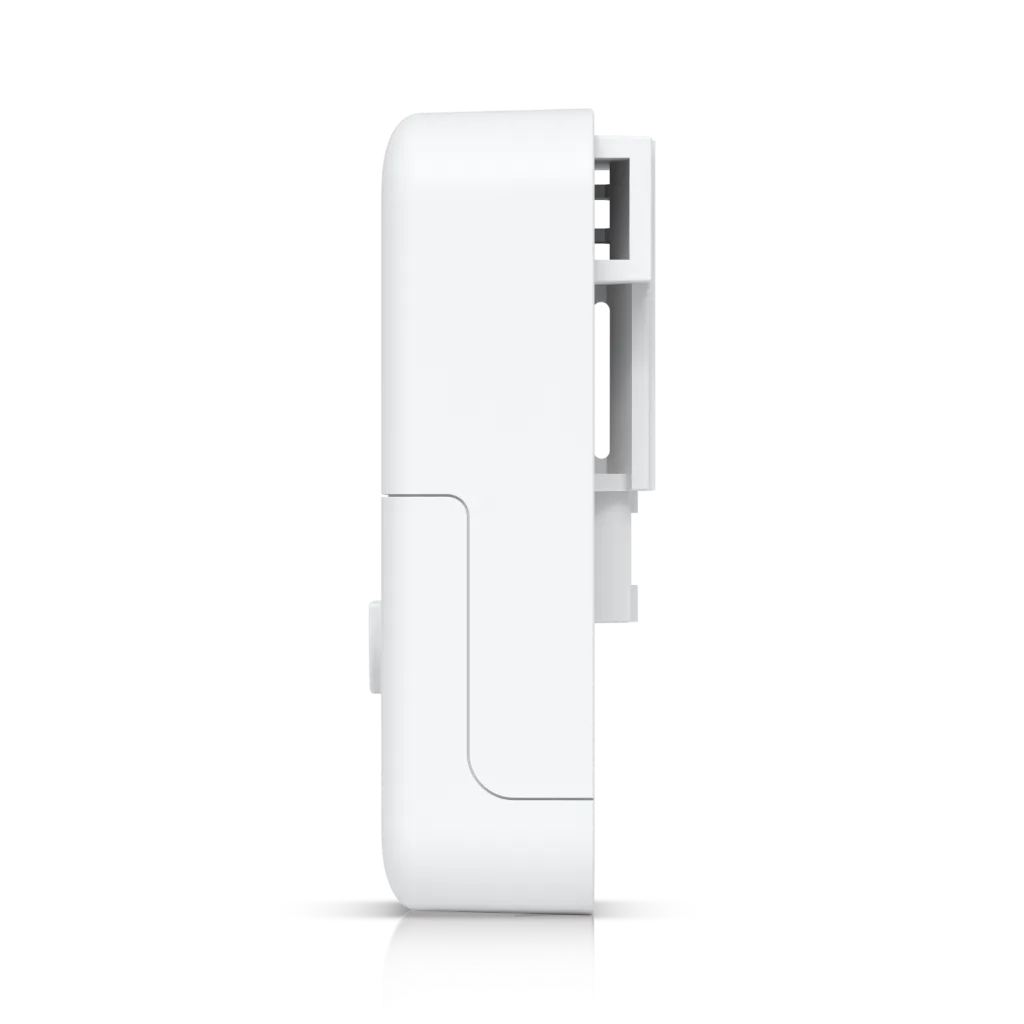

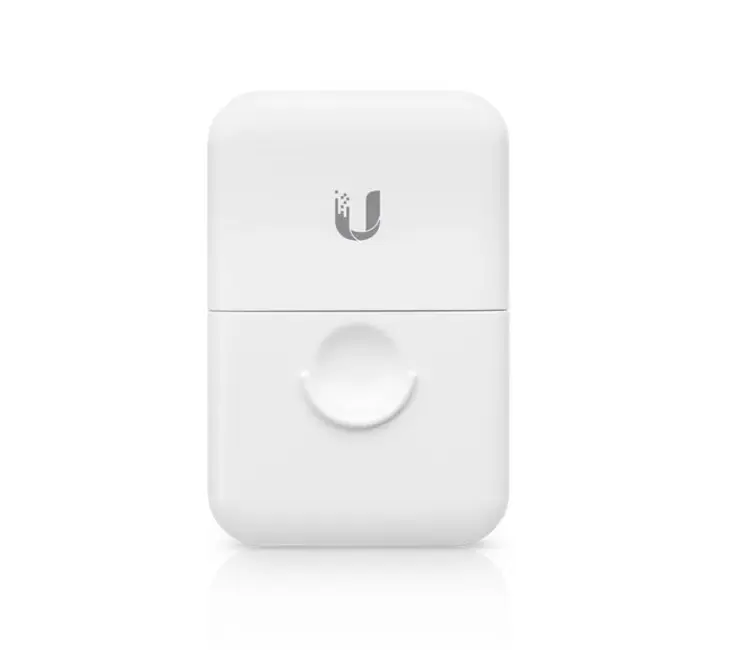

UFI-ETH-SP-G2

A rugged and weather-resistant Ethernet surge protector designed to safeguard networking equipment from electrostatic discharge and lightning-induced surges. The ETH-SP-G2 provides reliable protection for outdoor installations and PoE-enabled devices.

🔑 Key Features

• Protects network devices from power surges and ESD damage

• Supports Gigabit Ethernet speeds for both PoE and non-PoE devices

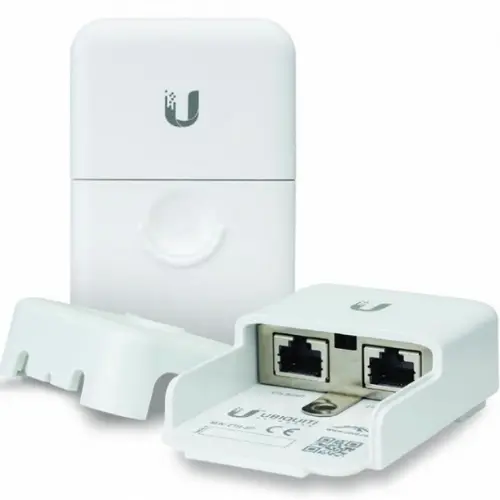

• Dual RJ45 female ports for easy inline connection

• Compact and weather-resistant design suitable for outdoor mounting

• Simple grounding connection for enhanced surge dissipation

• Compatible with all Ubiquiti and third-party network equipment

🛠 Technical Specifications

• Model: ETH-SP-G2

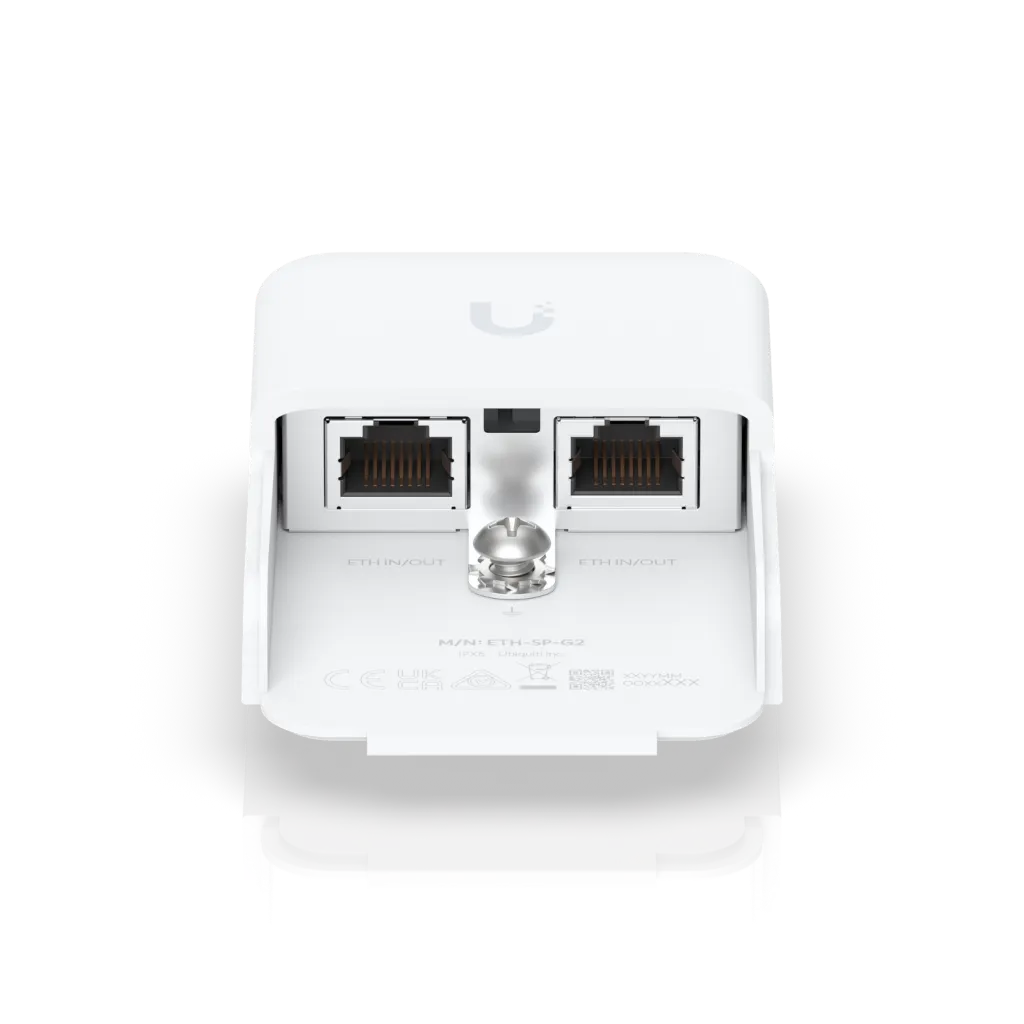

• Interface: 2 × RJ45 female ports

• Supported Speeds: 10/100/1000 Mbps (Gigabit)

• Protection Type: ESD and surge suppression up to 10 kA

• Clamping Voltage: 90 V typical

• Discharge Current Capacity: 10 kA+

• Operating Temperature: -30°C to +65°C

• Dimensions: 91 mm × 61 mm × 32.5 mm

• Weight: Approximately 80 g

• Housing Material: UV-resistant polycarbonate

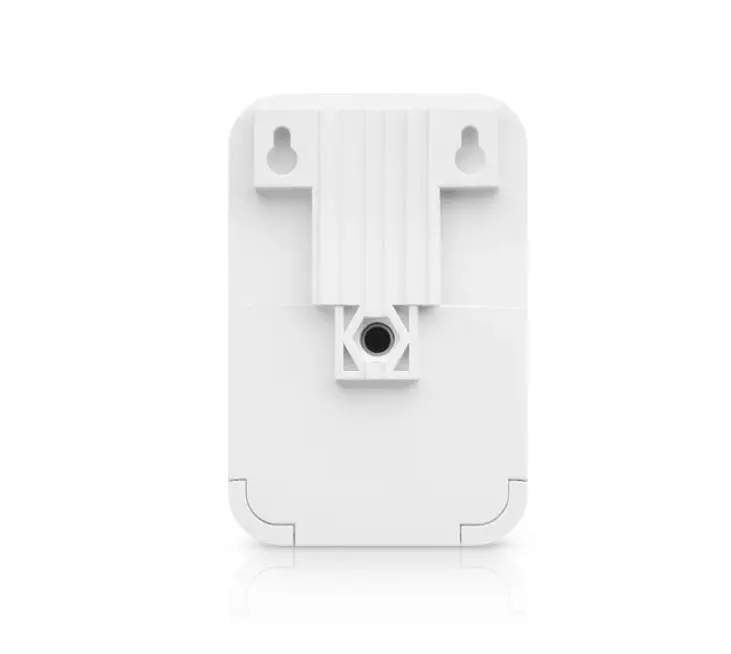

• Mounting: Wall or pole mount (grounding required)

🎯 Best Used For

The ETH-SP-G2 is best used for protecting outdoor network devices such as access points, cameras, and bridges from electrical surges and lightning strikes. Ideal for installations where Ethernet lines run outdoors or between buildings, ensuring long-term reliability and equipment safety.
