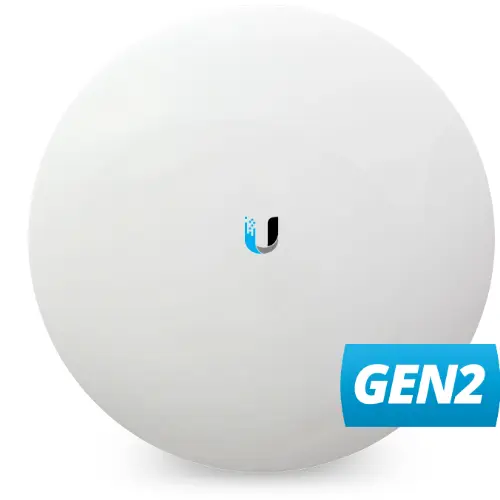

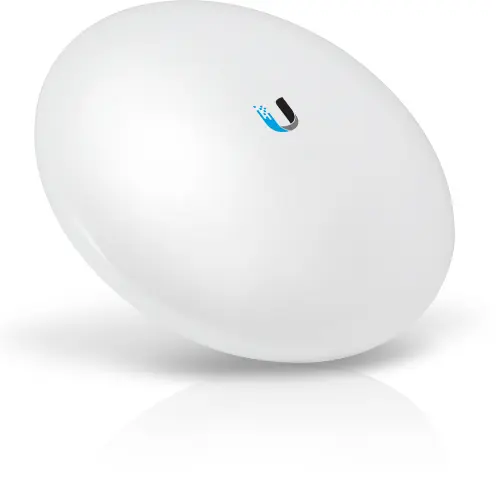

UFI-NBE-5AC-GEN2

The Ubiquiti NanoBeam 5AC Gen 2 is a high-performance 5 GHz outdoor wireless bridge designed for long-range connectivity. It delivers strong throughput, excellent noise immunity, and compact, durable construction suited for demanding environments.

🔑 Key Features

• 19 dBi integrated reflector antenna for high gain and directional precision

• airMAX ac protocol with up to 450 Mbps real TCP/IP throughput

• Dual Gigabit Ethernet ports with 24 V PoE input and passthrough capability

• Dedicated WiFi management radio for easy setup and monitoring

• Weather-resistant enclosure built for extreme outdoor conditions

🛠 Technical Specifications

• Model: NBE-5AC-GEN2

• Voltage / Power: 24 V DC, 0.5 A PoE; maximum power consumption 8.5 W

• Output / Sensitivity: 19 dBi gain, 5150–5875 MHz operating frequency

• Connections: Two 10/100/1000 Mbps Ethernet ports (PoE In and PoE Passthrough)

• Dimensions: 189 × 189 × 125 MM

• Material / Finish: UV-stabilised plastic enclosure, corrosion-resistant finish

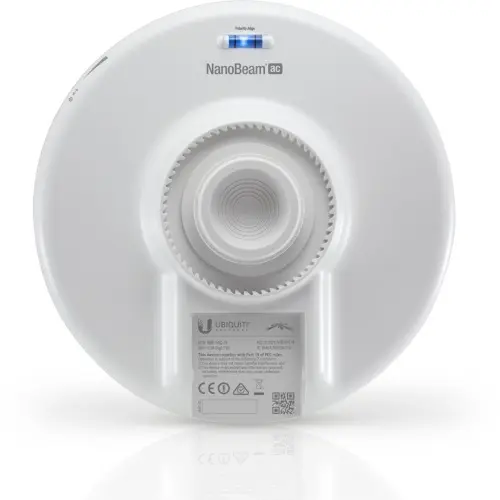

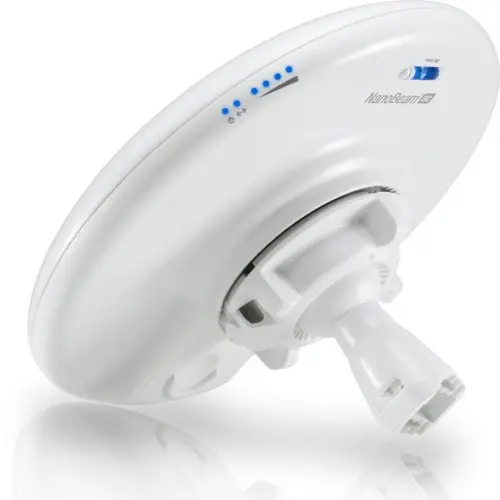

• Mounting Style: Ball-joint pole mount included, wall mount optional

• Environment: Outdoor rated, –40 °C to 80 °C operating temperature range

🎯 Best Used For

Ideal for long-distance point-to-point or point-to-multipoint wireless bridging where high performance and reliability are critical.
