UFI-U6-MESH

The Ubiquiti UniFi U6 Mesh is a powerful dual-band WiFi 6 access point designed for flexible indoor and outdoor deployment. It delivers strong coverage, high throughput, and mesh capability, ensuring seamless wireless connectivity across extended areas and challenging layouts.

🔑 Key Features

• Dual-band WiFi 6 (802.11ax) technology with up to 5.3 Gbps total throughput

• Supports mesh networking for seamless roaming and flexible coverage extension

• 4x4 MU-MIMO and OFDMA for high client density and efficient data handling

• Weather-resistant enclosure for both indoor and outdoor use

• Managed through the UniFi Network application for unified monitoring and control

🛠 Technical Specifications

• Model: U6-Mesh

• Voltage / Power: 48 V DC, 0.35 A via PoE (802.3af); maximum power consumption 13 W

• Output / Sensitivity: 5 GHz (4x4 MU-MIMO, OFDMA) up to 4.8 Gbps; 2.4 GHz (2x2 MIMO) up to 573 Mbps

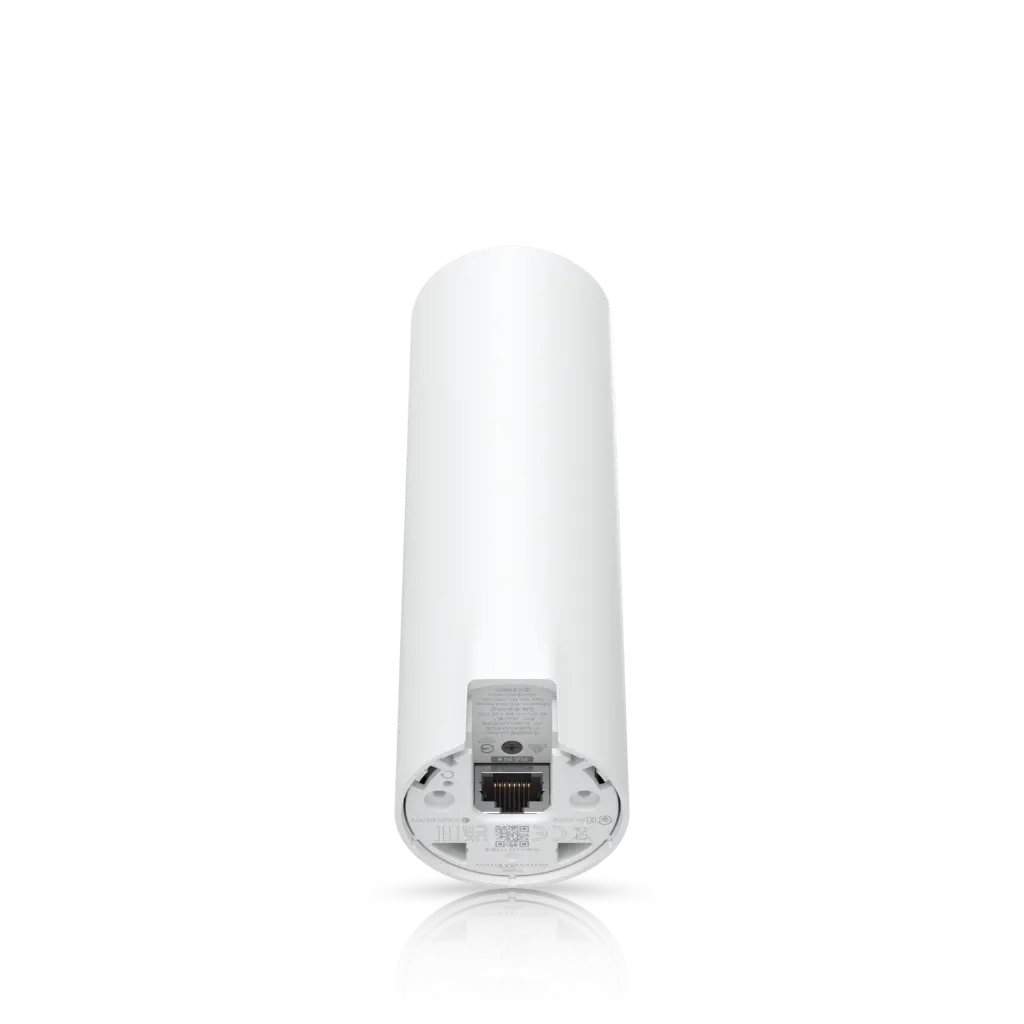

• Connections: One Gigabit Ethernet port (PoE in)

• Dimensions: Ø181 × 55 MM

• Material / Finish: UV-stabilised, weather-resistant plastic enclosure

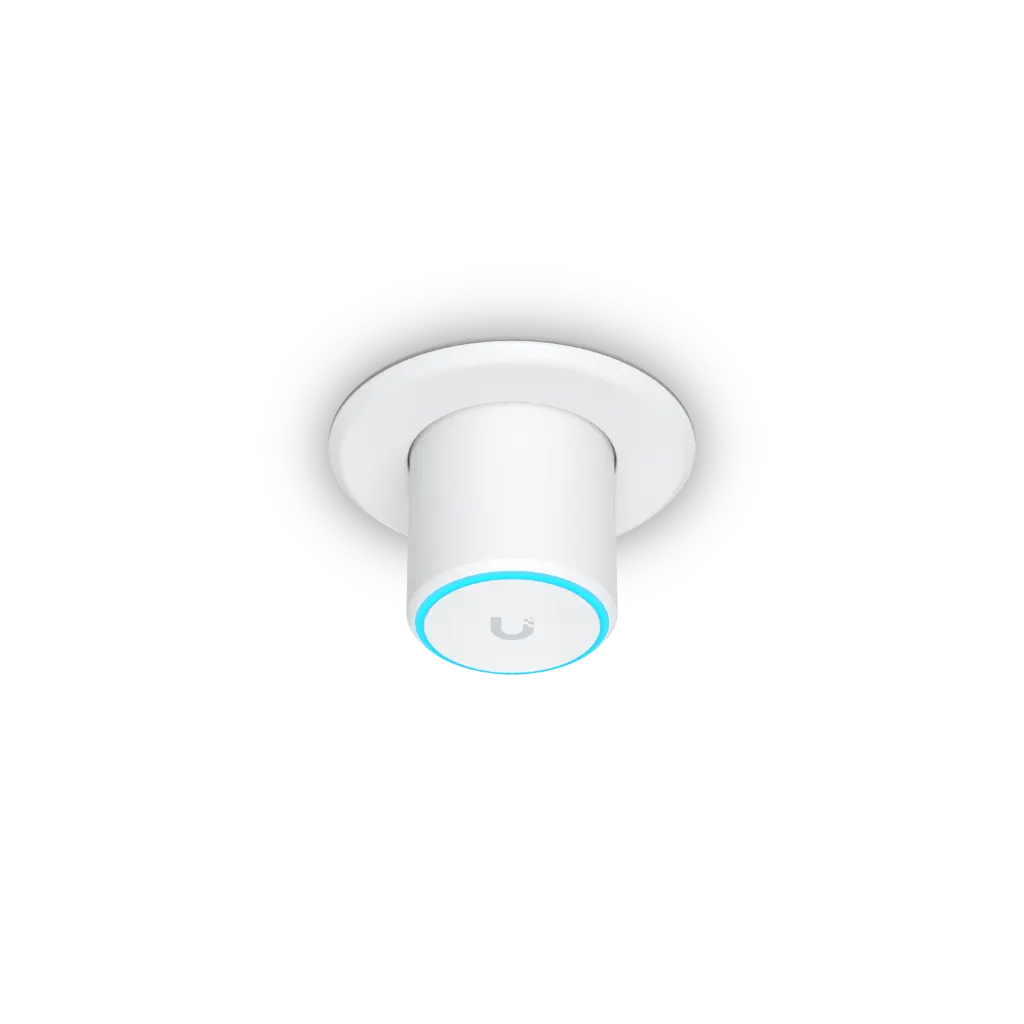

• Mounting Style: Wall, ceiling, or pole mount (mounting kit included)

• Environment: Indoor and outdoor rated; operating temperature –30 °C to 60 °C

🎯 Best Used For

Ideal for extending wireless coverage in homes, offices, and outdoor environments where reliability, high performance, and flexibility are essential.
