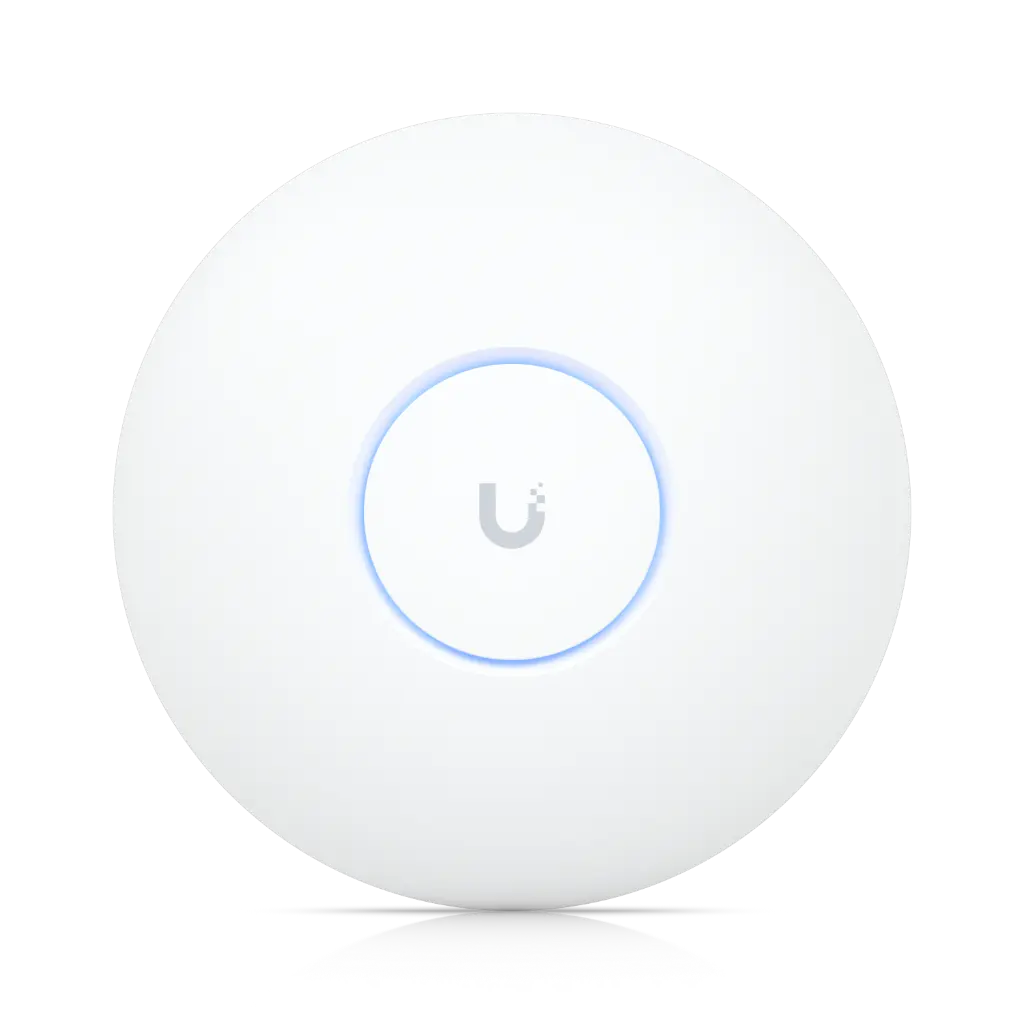

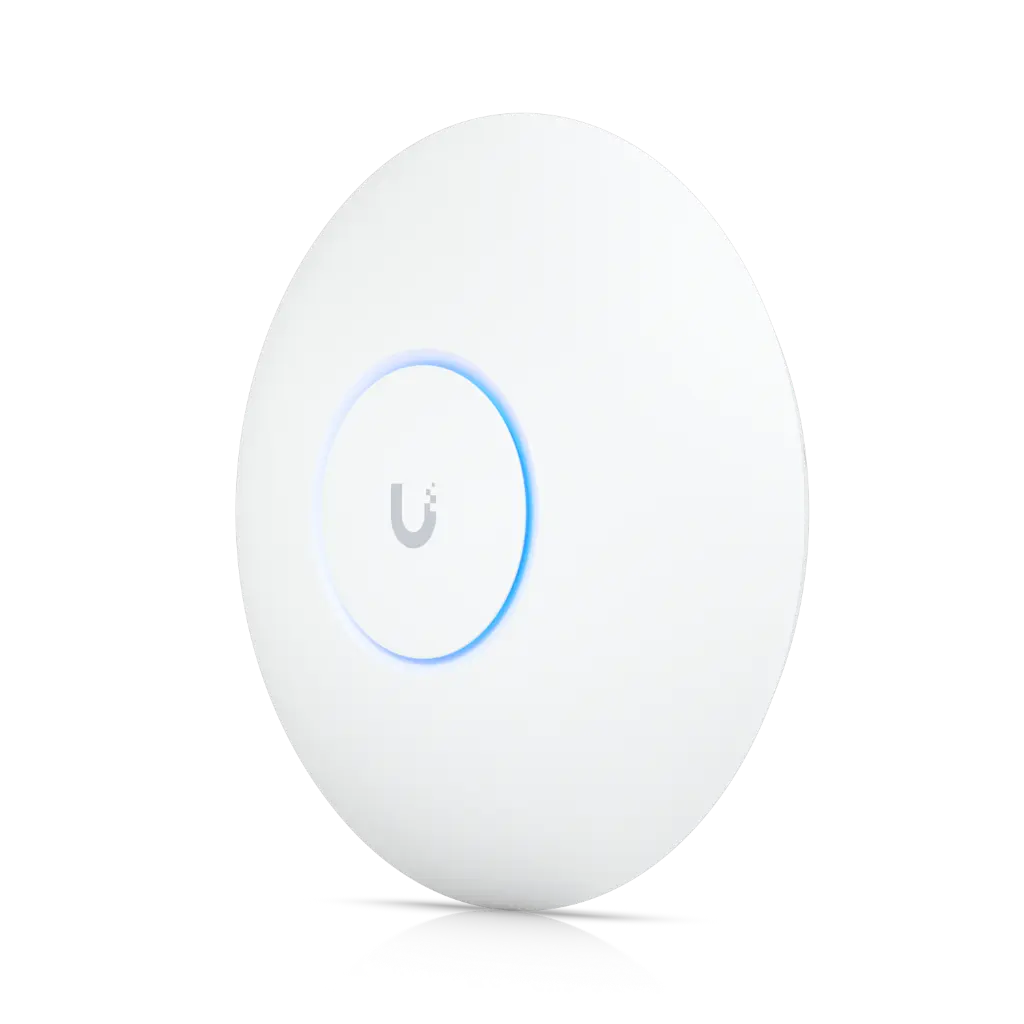

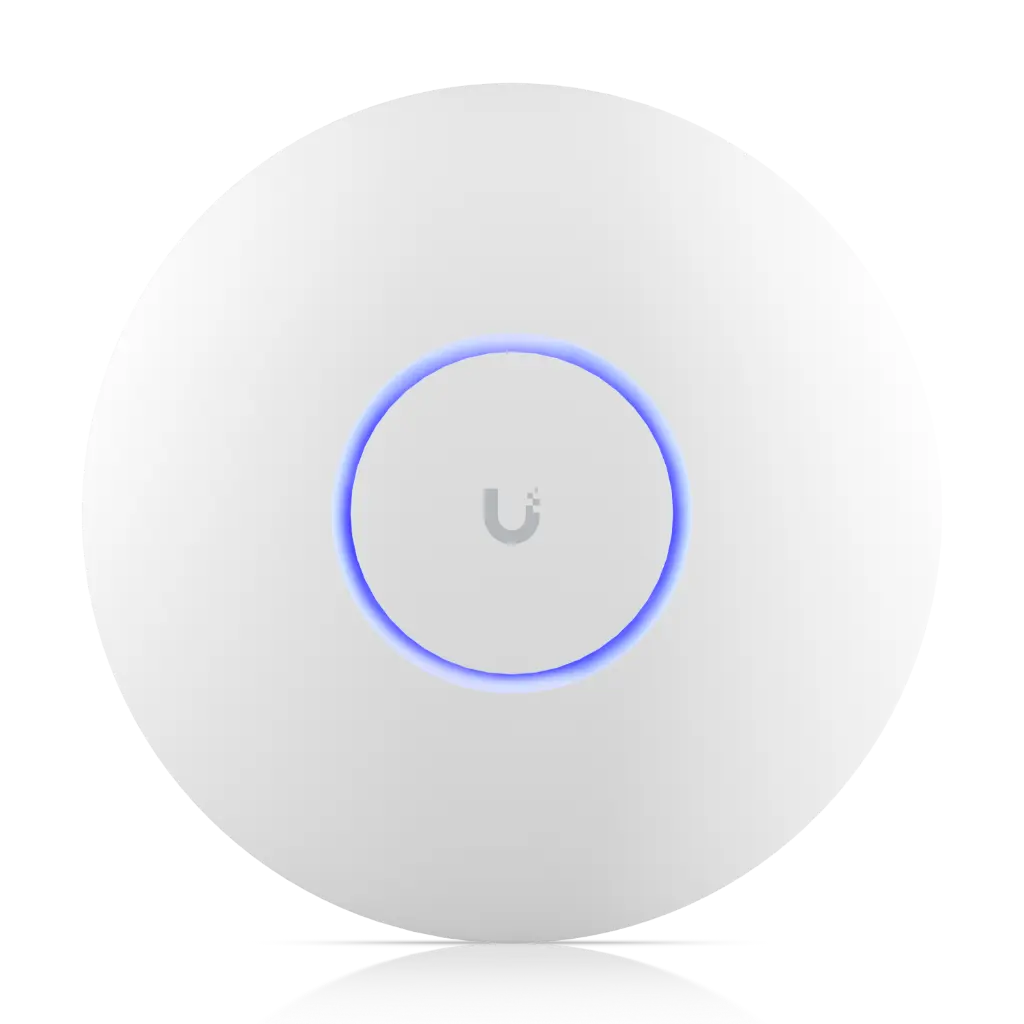

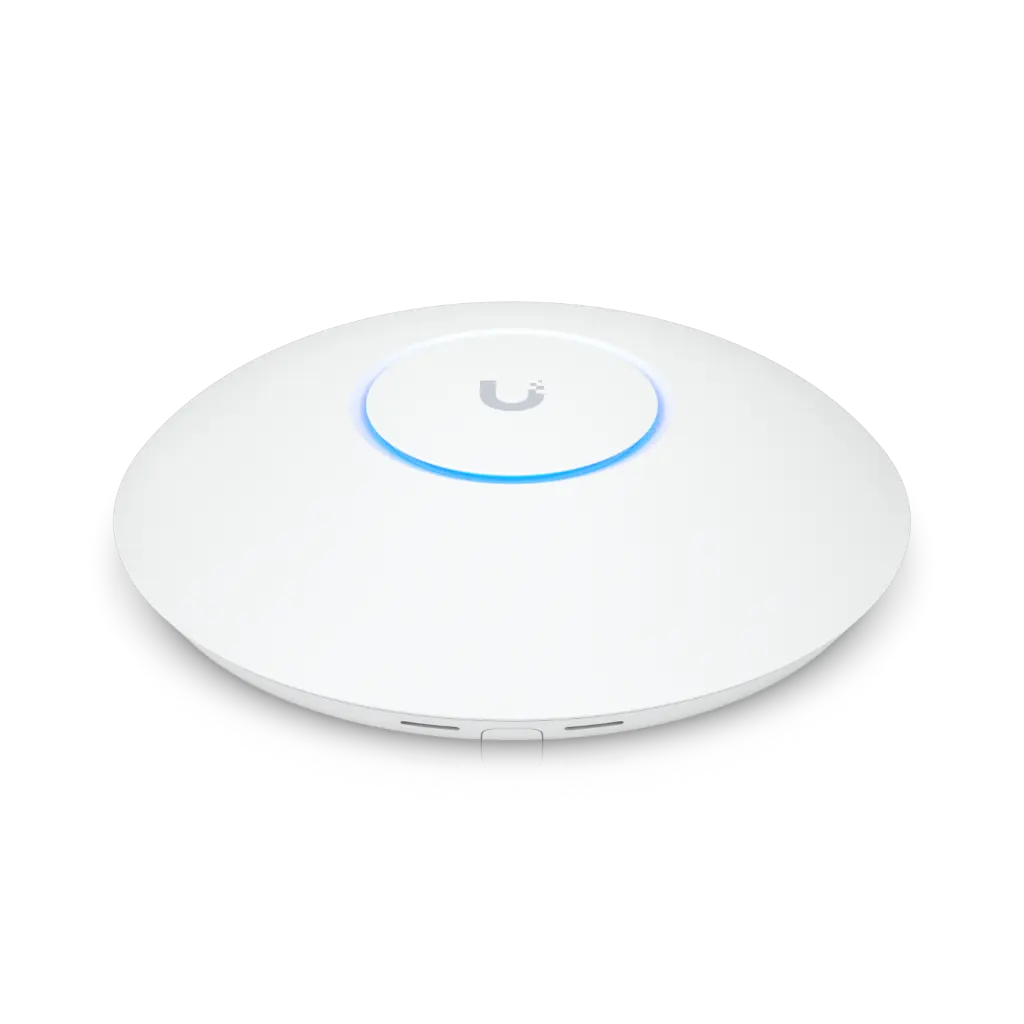

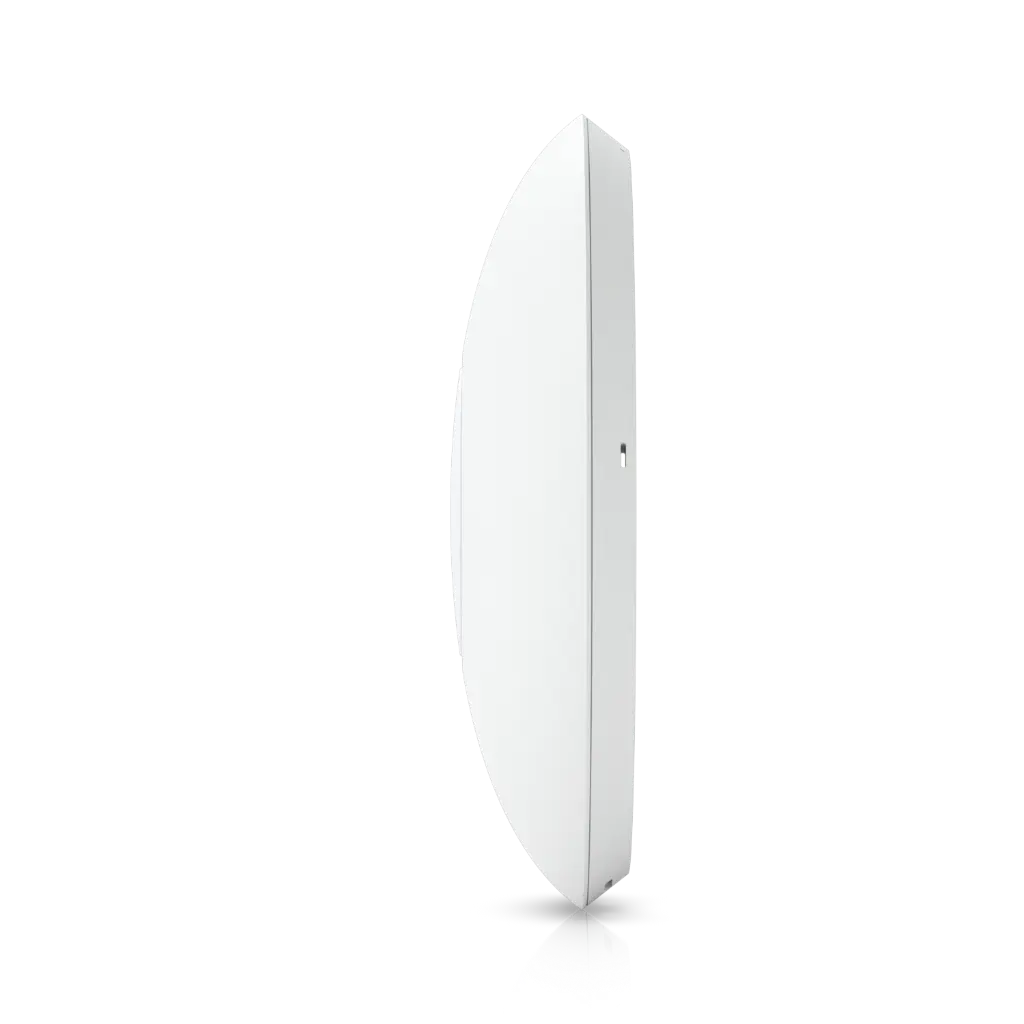

UFI-U7-PRO-MaX

The Ubiquiti UniFi U7 Pro Max is a high-end WiFi 7 access point engineered for enterprise-grade performance, offering lightning-fast connectivity, superior coverage, and exceptional efficiency. It’s designed to handle high-density client environments with seamless throughput and advanced wireless management.

🔑 Key Features

• WiFi 7 (802.11be) tri-band access point with 6 GHz, 5 GHz, and 2.4 GHz operation

• Total aggregate throughput up to 9.3 Gbps for ultra-high performance networks

• 4x4 MU-MIMO and OFDMA technologies ensure optimal efficiency under heavy loads

• Supports 320 MHz channel width for maximum data capacity and reduced latency

• Managed through the UniFi Network application with advanced analytics and control

🛠 Technical Specifications

• Model: U7-Pro-Max

• Voltage / Power: 48 V DC, 0.5 A via PoE (802.3at); maximum power consumption 21 W

• Output / Sensitivity: 6 GHz up to 5.8 Gbps, 5 GHz up to 2.8 Gbps, 2.4 GHz up to 688 Mbps

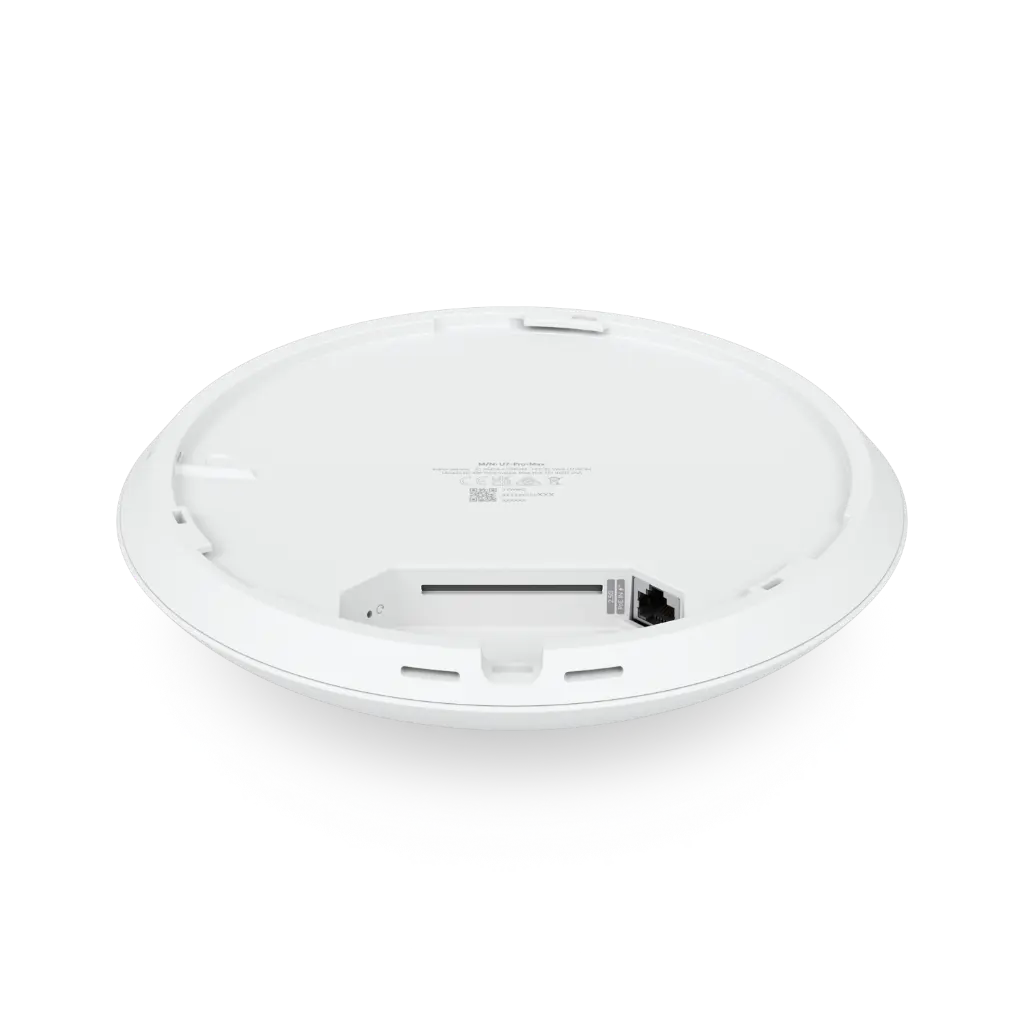

• Connections: One 2.5 GbE Ethernet port (PoE in)

• Dimensions: Ø200 × 42 MM

• Material / Finish: Polycarbonate enclosure with matte white finish

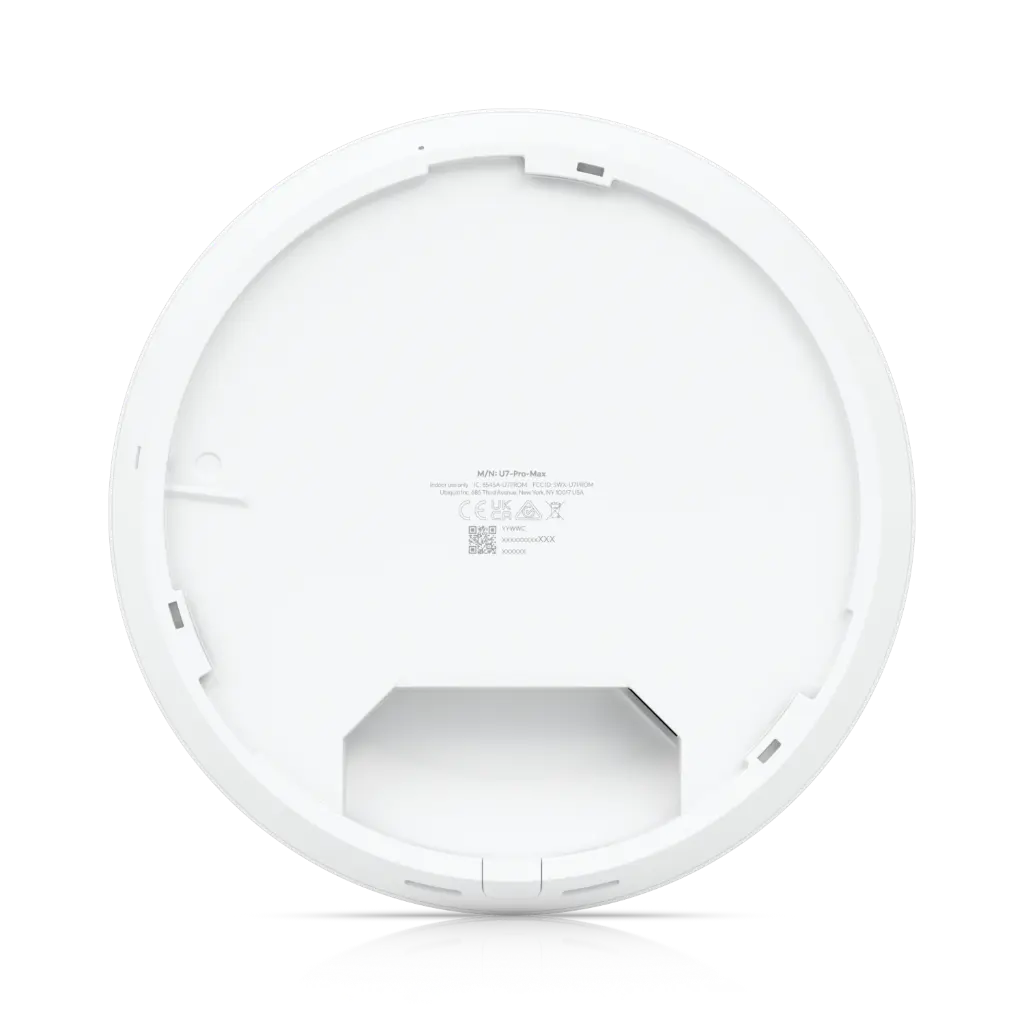

• Mounting Style: Ceiling or wall mount (hardware included)

• Environment: Indoor use; operating temperature 0 °C to 40 °C

🎯 Best Used For

Ideal for enterprise offices, hospitality venues, and high-demand commercial spaces requiring ultra-fast, low-latency WiFi 7 connectivity and advanced network scalability.
