UFI-UCG-ULTRA

https://myats.atssystems.com.au/web/image/product.template/4161/image_1920?unique=7d3af63
(0 review)


Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.

Runs UniFi Network for full-stack network management
Manages 30+ UniFi Network devices and 300+ clients
1 Gbps routing with IDS/IPS
Multi-WAN load balancing
0.96" LCM status display
USB-C powered (adapter included)

Installation Guide: Click Here

Compact and Powerful

The Ubiquiti Cloud Gateway Ultra represents the next step in networking, offering advanced features for homes and businesses. With dual-WAN support, it ensures seamless connectivity, providing flexible options for load balancing or failover protection. Its 1 Gbps routing performance delivers high-speed, uninterrupted internet access, even under demanding conditions.


Designed for Multi-WAN

Natively load balance two WANs. Add a third with UniFi LTE Backup.

Engineered for Secure Networking

Protect your organisation with IPS, VPN, content filtering, and more.

* Cloud Gateway Max pictured.

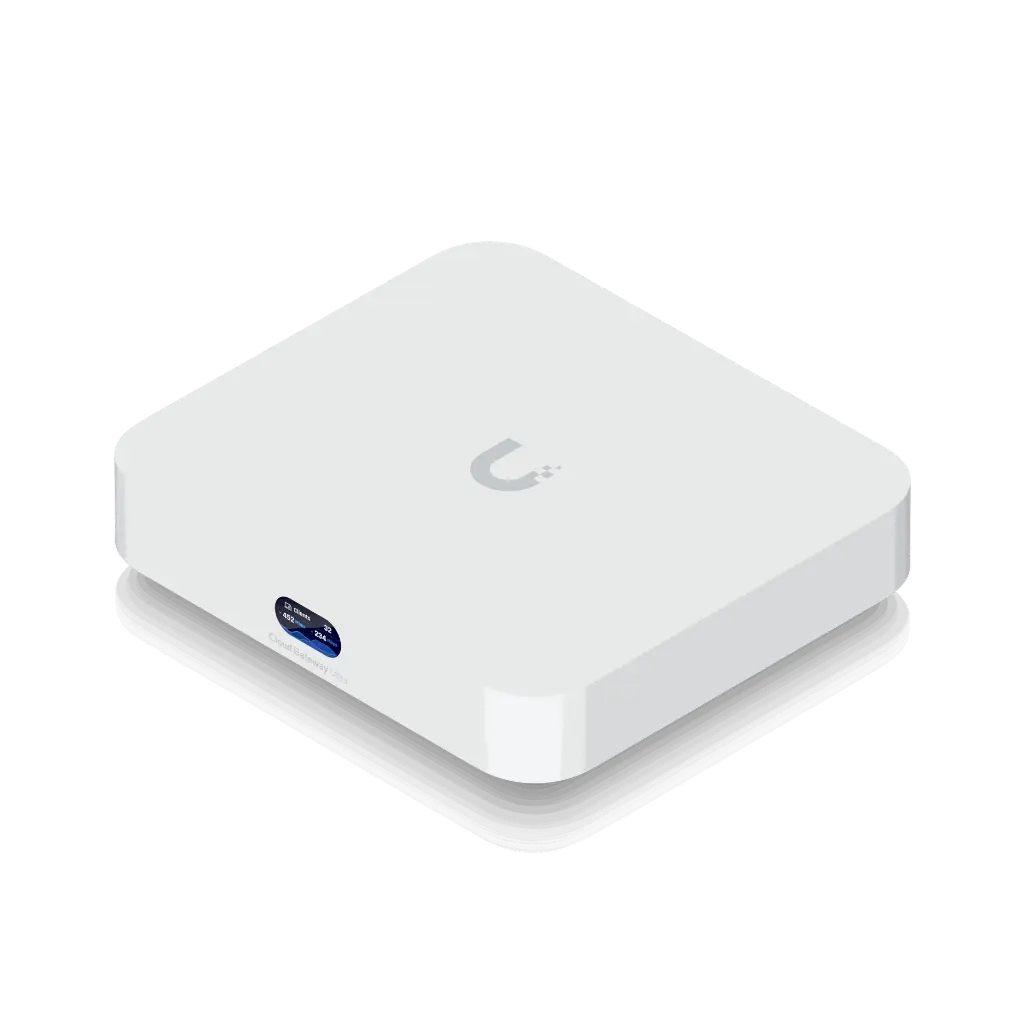

Compact Design

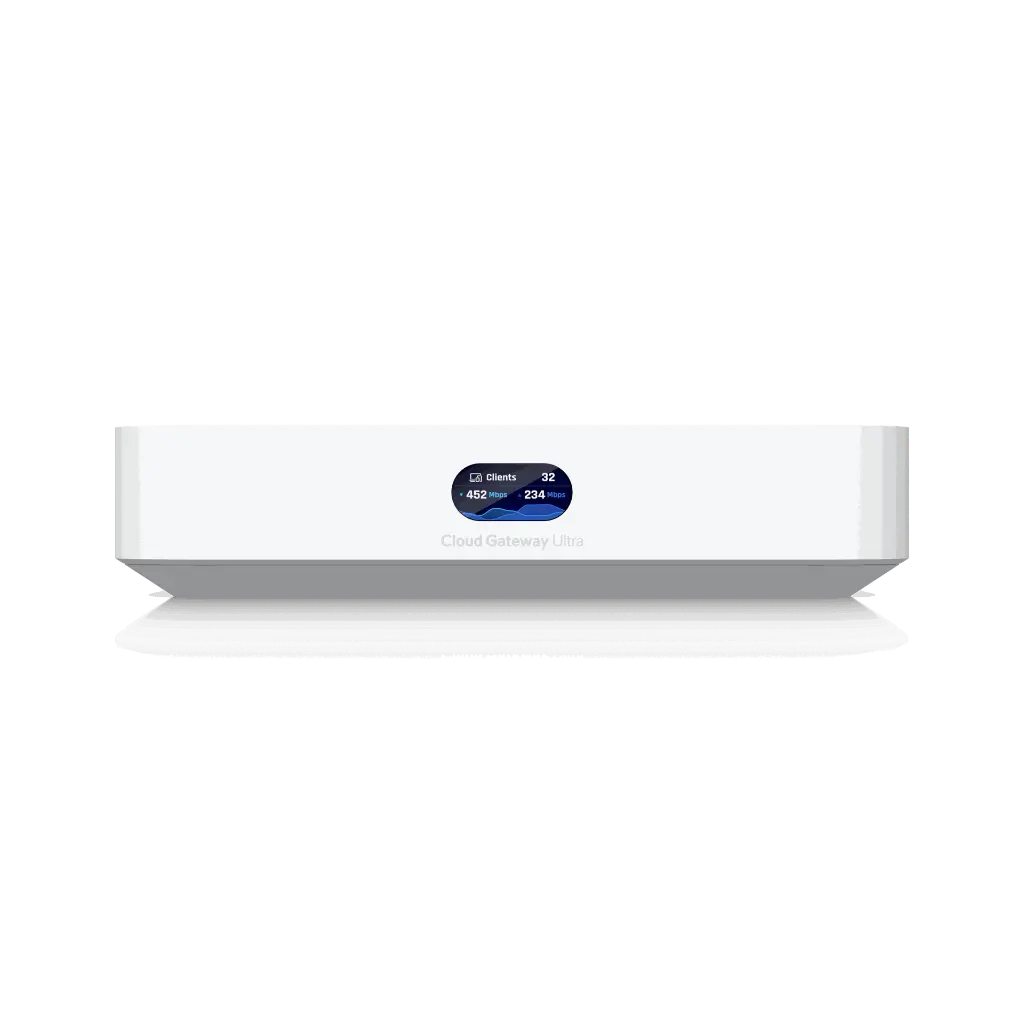

The Cloud Gateway Ultra boasts a sleek, compact design that seamlessly blends into any environment. Its 0.96-inch display provides instant access to key network metrics, ensuring you stay informed at a glance.


Equipped with four Gigabit Ethernet (GbE) RJ45 LAN ports, one of which is remappable to WAN, the Cloud Gateway Ultra offers versatile connectivity options to meet diverse networking needs.

Scalable Networking

Fully integrated into the UniFi ecosystem, the Cloud Gateway Ultra supports expansion with UniFi access points and switches, ensuring scalable networking configurations.


All the Power of UniFi

The complete UniFi experience in a strikingly compact form factor.

Technical Specs
Mechanical
Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight
520 g (1.1 lb)
Enclosure material
Polycarbonate
Hardware
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System memory
3 GB DDR4
On-board storage
16 GB eMMC
Management interface
Ethernet, Bluetooth
Networking interface
LAN: (4) GbE RJ45 ports
WAN: (1) 1/2.5 GbE RJ45 port
IDS/IPS throughput
1 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method
USB type C (5V DC/3A)
Supported voltage range
100–240V AC
Max. power consumption
6.2W
LCM display
0.96" status display
Button
Factory reset
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customisable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet
Green: link/activity
Application Requirements
Mobile app
UniFi iOS™: Version 10.12.0 and later
UniFi Android™: Version 10.11.2 and later
