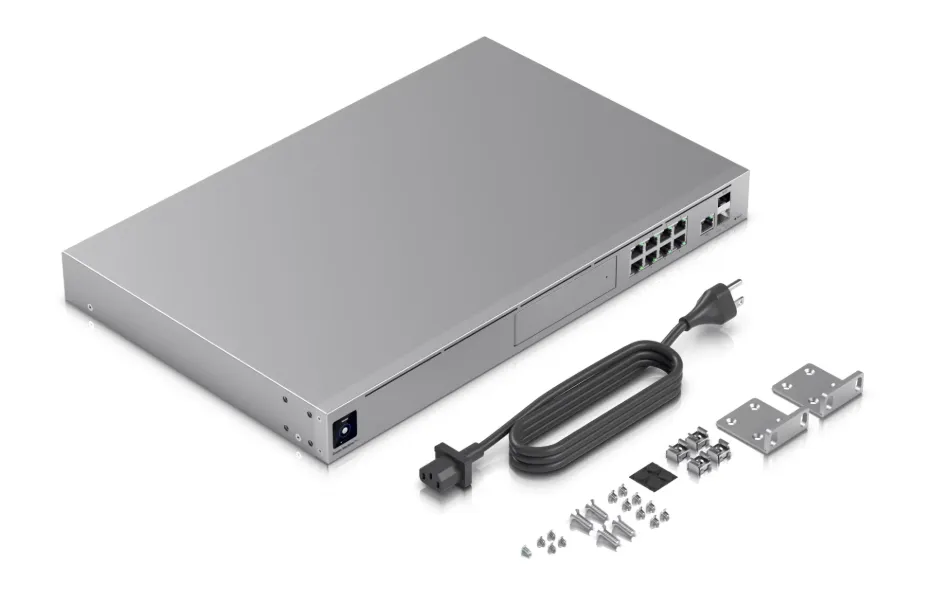

The Ubiquiti UniFi Dream Machine Pro is an enterprise-grade all-in-one security gateway, network controller, and NVR designed for high-performance business networks. Delivering advanced routing, threat management, UniFi OS applications, and seamless integration with UniFi Protect, the UDM-Pro provides a powerful, scalable foundation for modern IT environments. Optimised for fibre and multi-gig WAN connections, it is ideal for organisations seeking robust performance, centralised management, and reliable security.
🔑 Key Features
Integrated UniFi Network controller and UniFi Protect NVR with 3.5" HDD bay
Advanced threat management with IDS/IPS and deep packet inspection
Dual WAN (10G SFP+ and 1G RJ45) for load balancing and failover
8-port Gigabit switch with 10G SFP+ LAN for high-speed uplinks
Rack-mountable 1U design built for professional server environments
🛠Technical Specifications
Model: UDM-Pro
Voltage / Power: 100–240 V AC, internal PSU; maximum power consumption 33 W
Routing Performance: Up to 3.5 Gbps with threat management enabled
Storage: 3.5" HDD bay for UniFi Protect video storage (HDD sold separately)
Connections:
1 × 10G SFP+ WAN
1 × 1G RJ45 WAN
8 × 1G RJ45 LAN
1 × 10G SFP+ LAN
1 × RJ45 console port
Dimensions: 442.4 × 43.7 × 285.6 MM (1U rackmount)
Weight: 3.9 kg
Material / Finish: Metal enclosure with front touch display
Mounting Style: Standard 19" rack frame (rack ears included)
Environment: Operating temperature 0 °C to 40 °C; humidity 10–90% non-condensing
🎯 Best Used For
The UDM-Pro is ideal for businesses, campuses, retail environments, hospitality venues, and enterprise networks requiring unified security, high-performance routing, professional video surveillance management, and reliable multi-WAN capabilities.
✅ Complementary Products (Same Brand)
UniFi Access Points such as U6 Pro, U6 Enterprise, U7 Lite, or U7 Pro Max
UniFi PoE Switches for powering APs, cameras, and access devices
UniFi Protect Cameras including G4 Pro, G4 Dome, G5 Bullet, and G5 Turret
UniFi Access hardware for secure entry management
UniFi Cloud Key G2+ or additional UniFi gateways for multi-site deployments
The UniFi Dream Machine Pro serves as the backbone of a professional UniFi installation, combining routing, security, controller functions, and video management into one efficient, scalable, and reliable platform.
