UFI-UDR7

The Ubiquiti UniFi Dream Router 7 combines a next-generation cloud gateway, WiFi 7 tri-band access point, and PoE switching into one powerful device. It delivers enterprise-grade routing, high-speed wireless coverage, and unified management through the UniFi platform, making it ideal for modern business and home networks.

🔑 Key Features

• WiFi 7 tri-band access point with 6 GHz, 5 GHz, and 2.4 GHz bands for ultra-high throughput

• 10G SFP+ WAN port and 2.5 GbE WAN port for multi-gigabit connectivity

• Three 2.5 GbE LAN ports with one PoE output for powering connected devices

• Integrated UniFi OS supporting Network, Protect, Access, Talk, and Connect applications

• Built-in microSD storage for local recording and backup

🛠 Technical Specifications

• Model: UDR7

• Voltage / Power: 100–240 V AC internal power supply, 50 W maximum, 26 W typical

• Output / Sensitivity: WiFi 7 throughput up to 5.7 Gbps (6 GHz), 4.3 Gbps (5 GHz), and 688 Mbps (2.4 GHz)

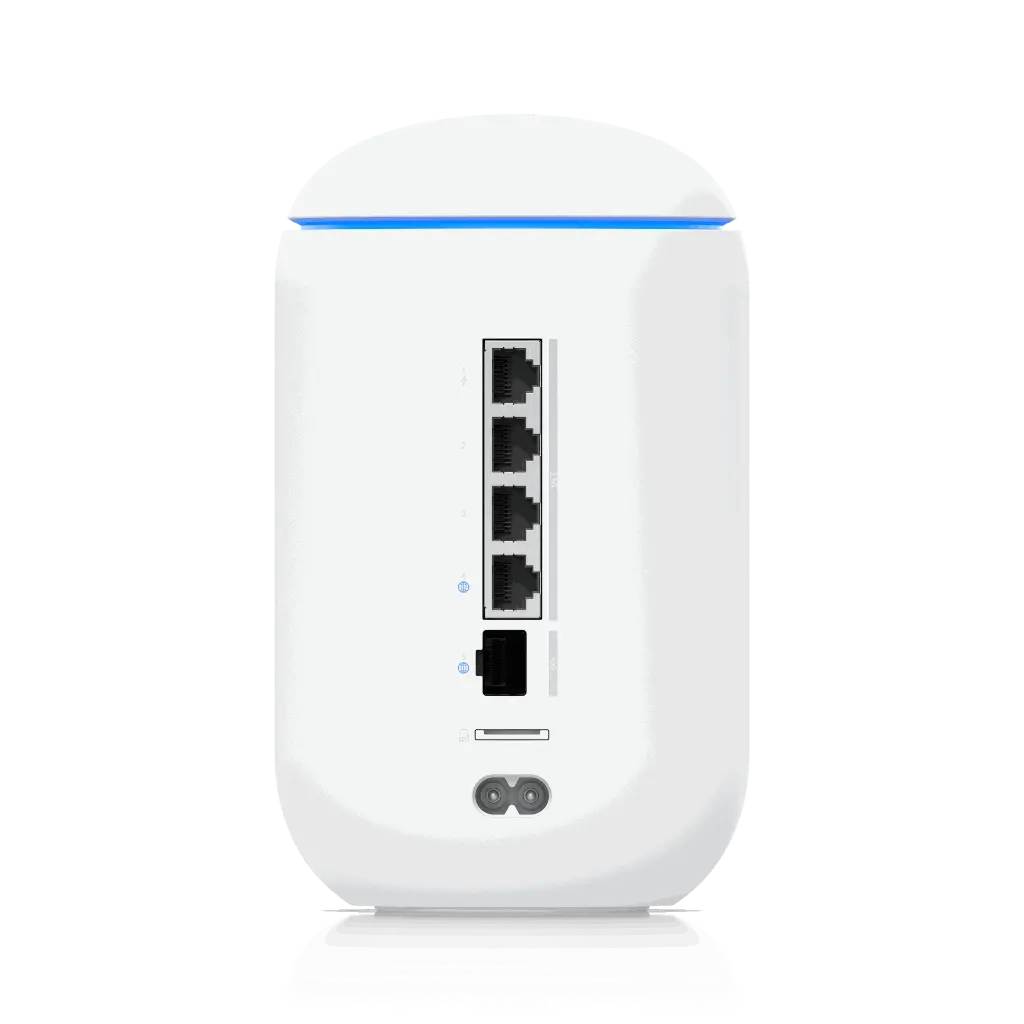

• Connections: One 10G SFP+ WAN, one 2.5 GbE WAN, three 2.5 GbE LAN (one PoE output)

• Dimensions: 110 × 184.1 MM

• Material / Finish: Polycarbonate enclosure, matte finish

• Mounting Style: Desktop placement

• Environment: Indoor use, operating temperature –10 °C to 40 °C

🎯 Best Used For

Ideal for small to medium businesses, branch offices, and modern homes requiring high-speed wireless performance, advanced network management, and integrated UniFi services in a single device.
