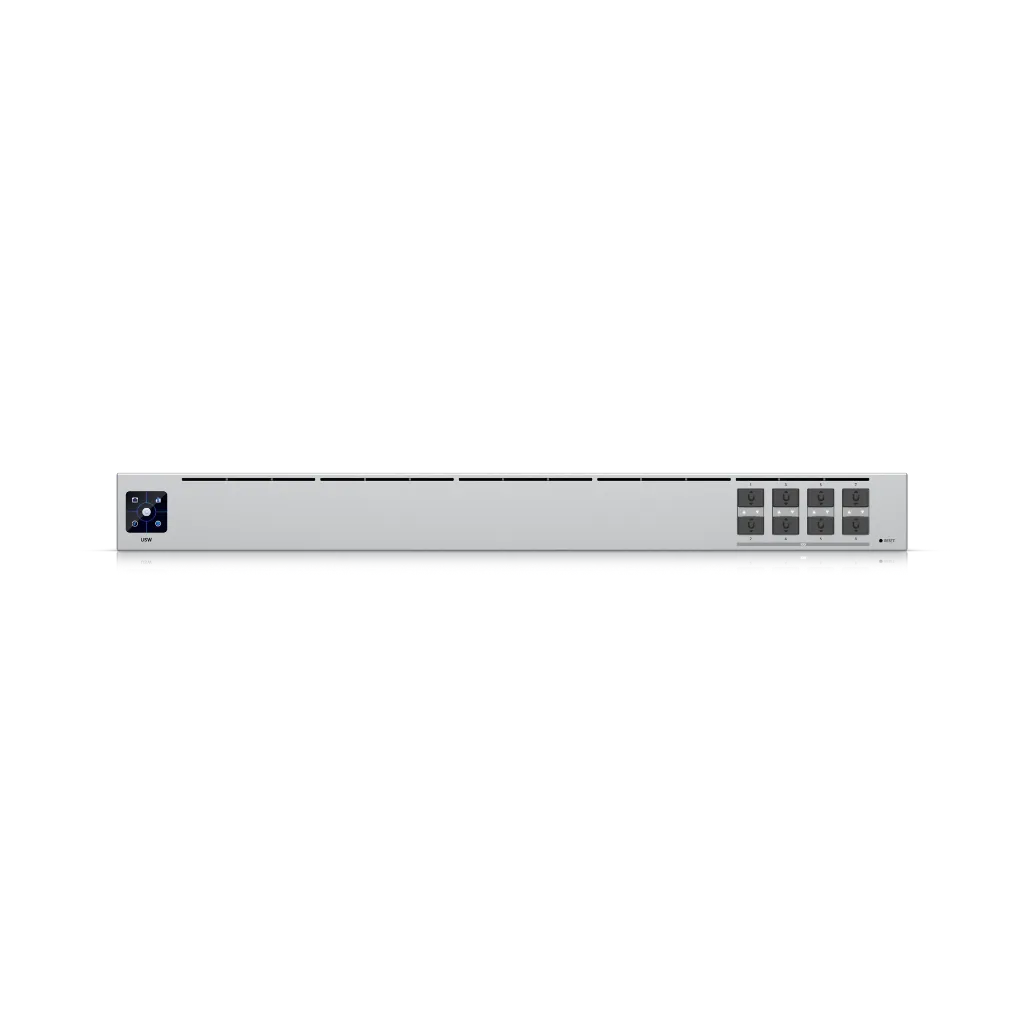

The Ubiquiti UniFi USW-Aggregation is a compact, high-performance Layer 2 aggregation switch designed to deliver ultra-fast 10G fibre connectivity for core and distribution layers of modern networks. With a fanless, silent design and eight 10G SFP+ ports, it provides a clean, efficient solution for aggregating switches, servers, and gateways within the UniFi ecosystem.
🔑 Key Features
Eight 10G SFP+ ports for high-speed fibre aggregation
Fully managed Layer 2 switching with VLANs, link aggregation, and traffic control
Fanless design for silent operation in office or rack environments

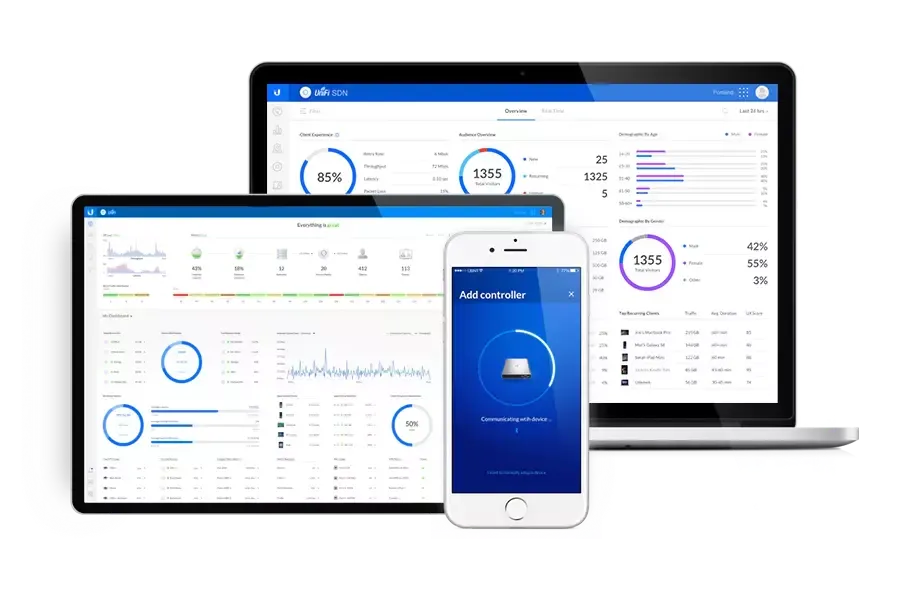

UniFi Network application management for centralised visibility and control
Slim 1U rackmount form factor optimised for core or distribution deployments
🛠Technical Specifications
Model: USW-Aggregation
Voltage / Power: 100–240 V AC internal power supply
PoE Output: Not supported
Switching Capacity: 160 Gbps
Forwarding Rate: 119.04 Mpps
Connections: 8 × 10G SFP+ ports
Dimensions: 442.4 × 120 × 43.7 MM (1U rackmount)
Weight: Approximately 2.8 kg
Material / Finish: Metal chassis with passive cooling design
Mounting Style: Standard 19" rackmount (rack ears included)
Environment: Indoor use; operating temperature 0 °C to 40 °C; humidity 10–90% non-condensing
Managed with the UniFi Network application: Version 5.14.12 and later
🎯 Best Used For
Ideal for aggregating access switches, connecting high-speed servers or storage, and building a 10G fibre backbone in enterprise offices, data rooms, campuses, and multi-switch UniFi environments.
✅ Complementary Products (Same Brand)
UniFi access switches such as USW-24, USW-48, or PoE variants for edge connectivity
UniFi gateways including UDM-Pro, UDM-SE, or UDM Pro Max
UniFi SFP+ fibre modules and DAC cables for 10G uplinks
UniFi rack accessories and cable management for professional installations
The USW-Aggregation is a purpose-built backbone switch, delivering fast, silent, and scalable 10G aggregation to support growing UniFi network infrastructures.
