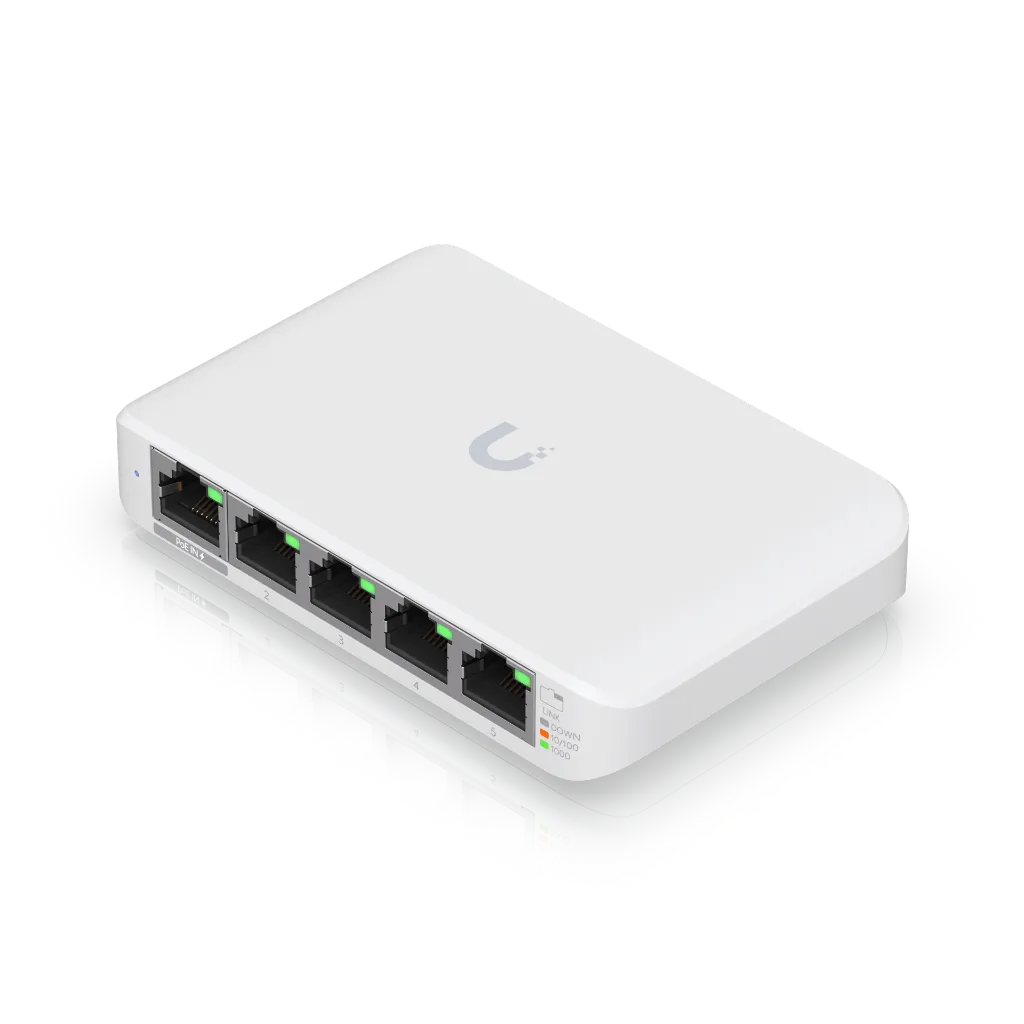

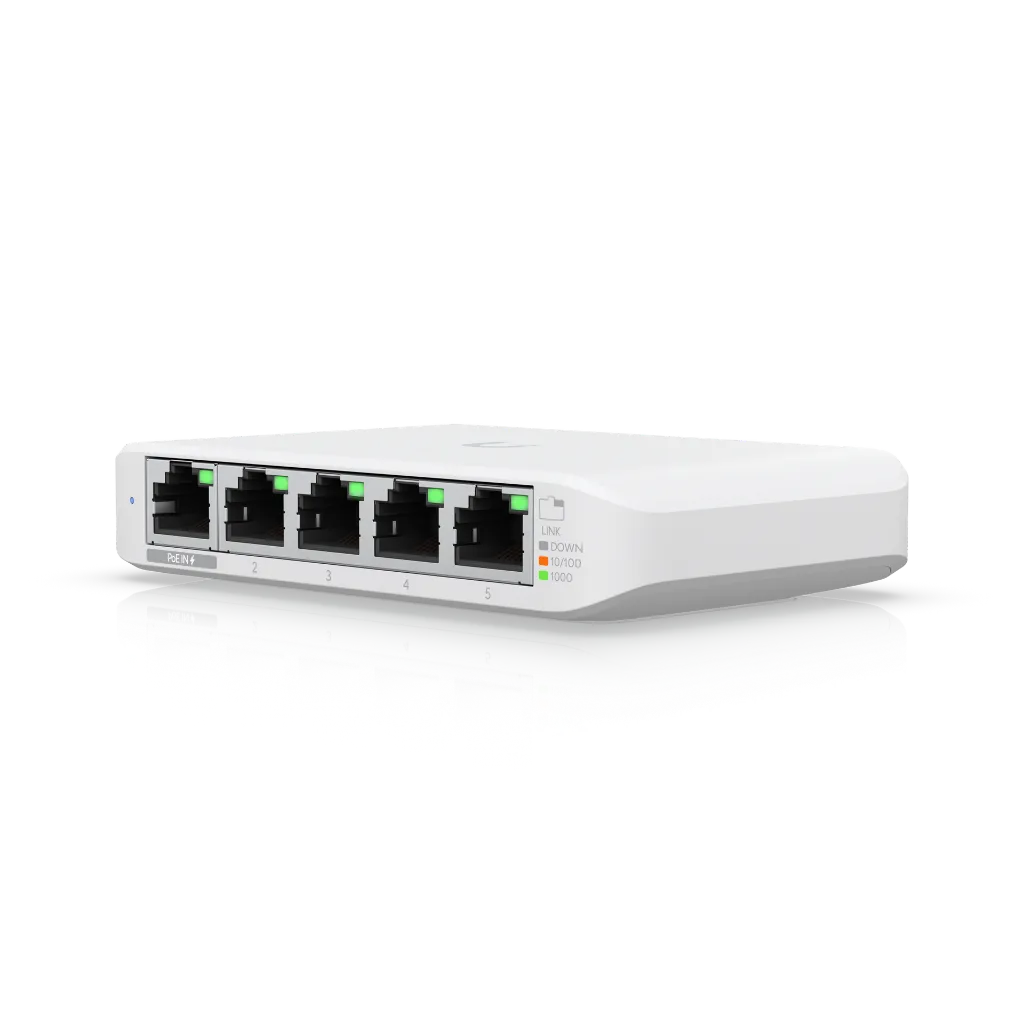

The Ubiquiti UniFi Switch Flex Mini is a compact, entry-level managed Gigabit switch designed to extend wired connectivity in small offices, home offices, and edge locations. With simple power options and seamless UniFi Network integration, it delivers reliable Layer 2 switching in a minimal, space-saving form factor.
🔑 Key Features
Five Gigabit Ethernet ports for basic wired network expansion
Fully managed Layer 2 switch with UniFi Network integration
Flexible power options via 802.3af PoE or USB Type-C
Fanless, silent operation ideal for desktops and quiet environments
Simple, compact design for quick deployment at the network edge
🛠Technical Specifications
Model: USW-FLEX-MINI

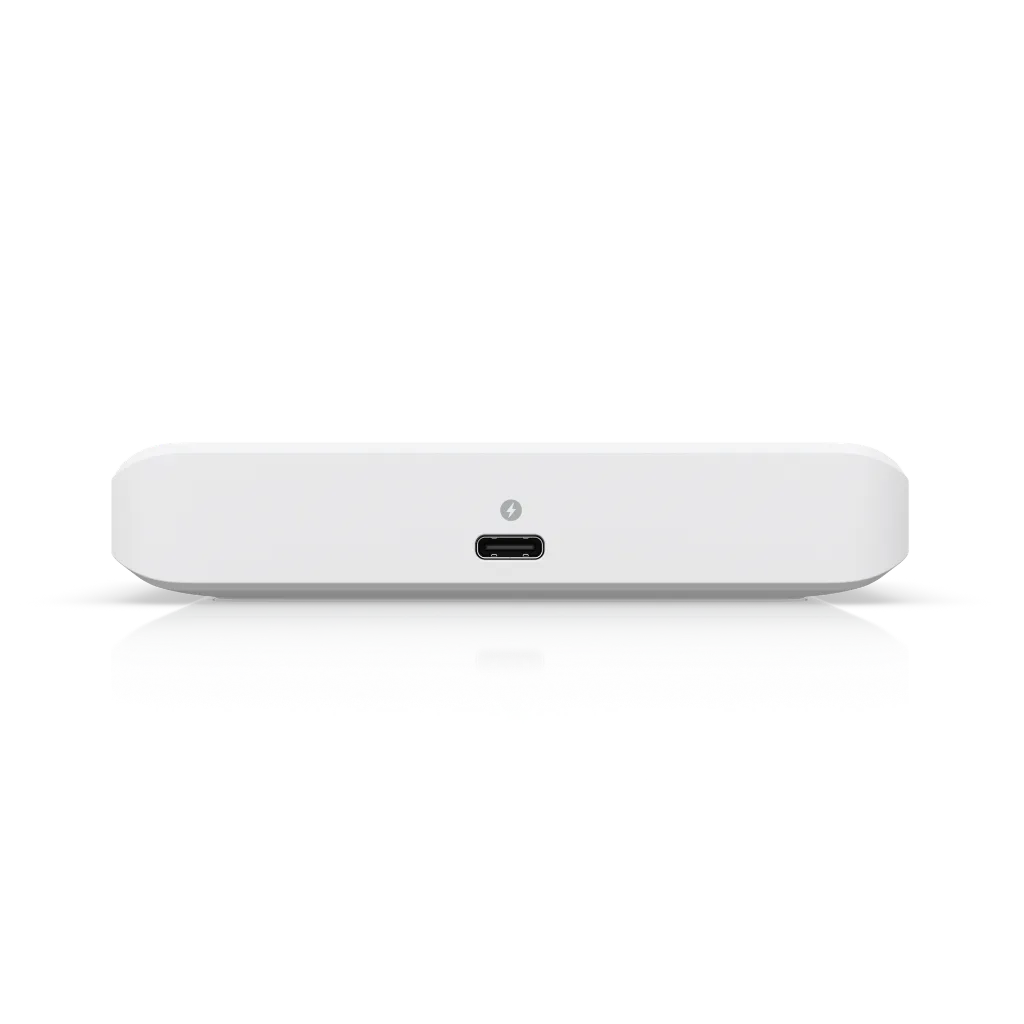

Voltage / Power: Powered via 802.3af PoE or USB Type-C 5 V 1 A
PoE Input: 1 × 802.3af PoE input port
PoE Output: Not supported
Switching Capacity: 10 Gbps
Forwarding Rate: 7.44 Mpps

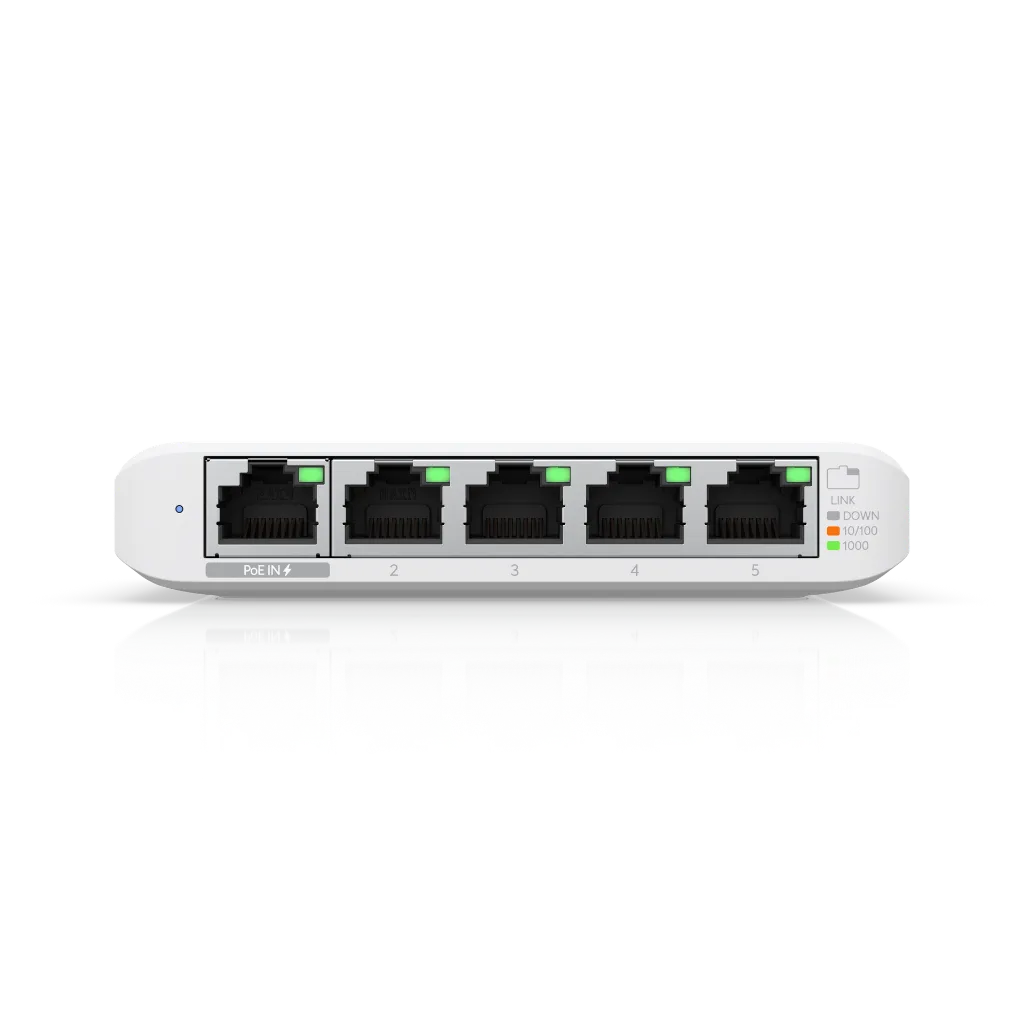

Connections: 5 × RJ45 Gigabit Ethernet ports
Dimensions: 107 × 70 × 28 MM
Material / Finish: Polycarbonate enclosure with matte finish
Mounting Style: Desktop placement or wall mount
Environment: Indoor use; operating temperature 0 °C to 40 °C
🎯 Best Used For
Ideal for home offices, small businesses, meeting rooms, and edge locations where simple, managed Gigabit switching is required to connect workstations, printers, VoIP phones, or access points without deploying a full-sized switch.
✅ Complementary Products (Same Brand)
UniFi gateways such as UDR, UDM-SE, or UDM Pro Max
UniFi WiFi access points including U6 Lite, U6 Pro, or U7 Lite
UniFi PoE switches or PoE injectors for upstream power
UniFi Aggregation or Enterprise switches for scalable backbone connectivity
The UniFi Switch Flex Mini offers an affordable and professional way to extend wired networks while retaining the visibility, control, and consistency of the UniFi ecosystem.
