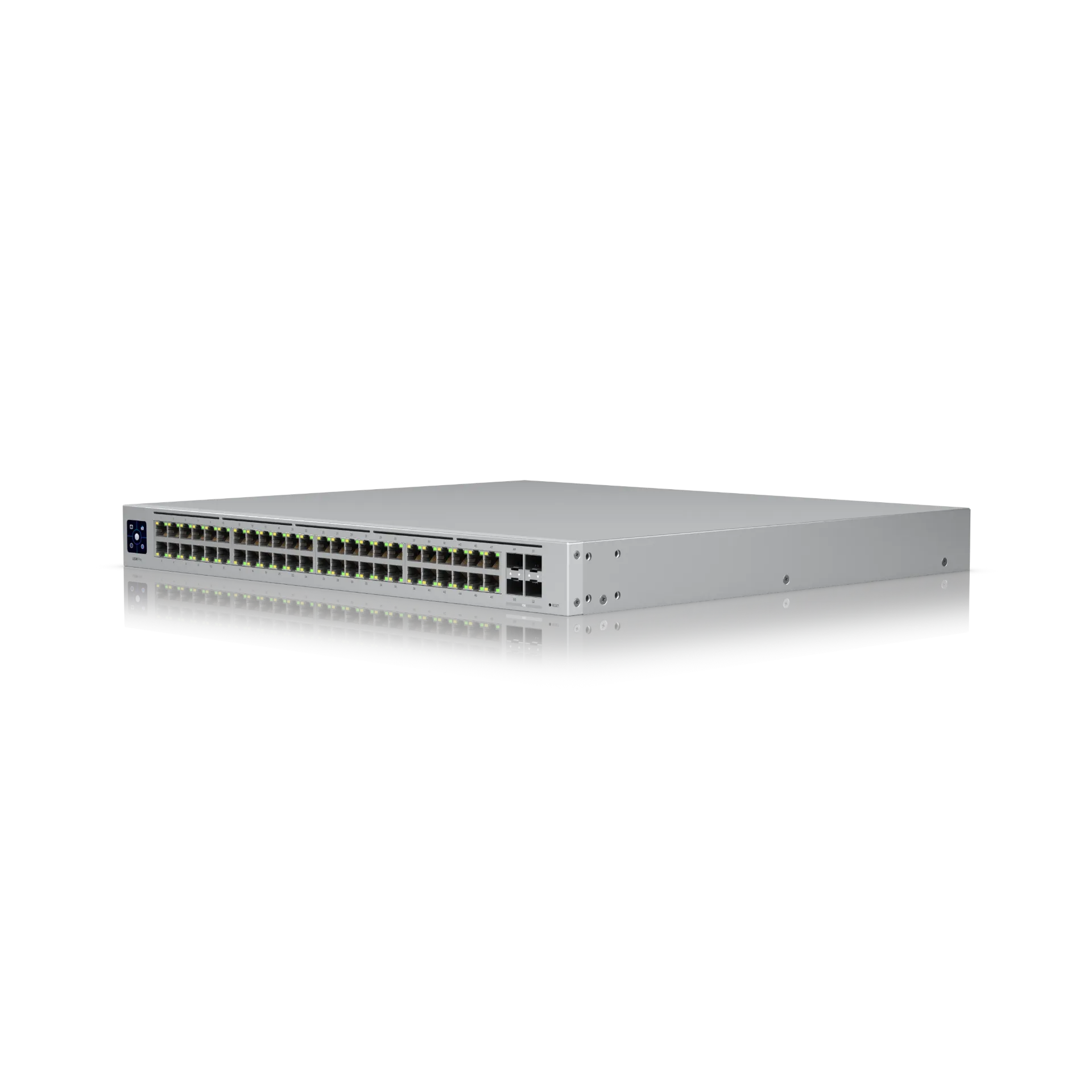

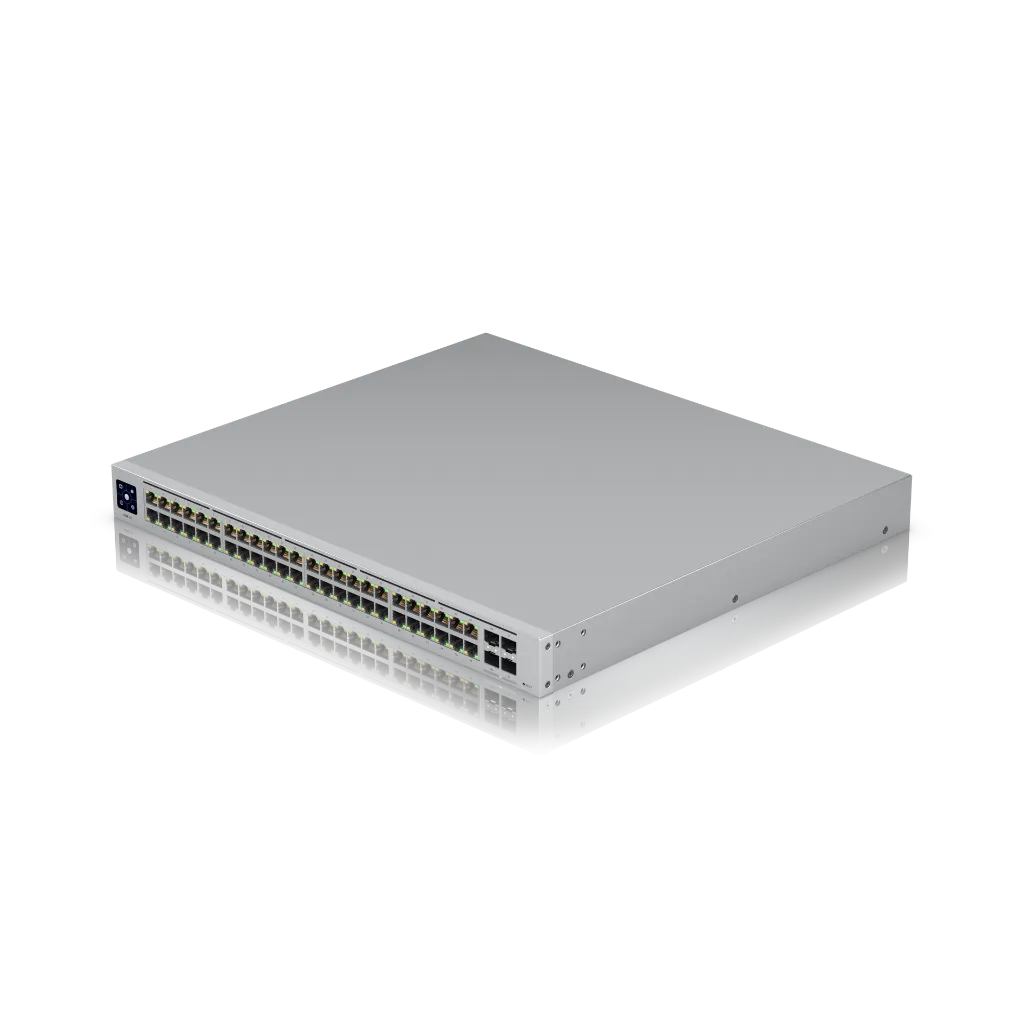

The Ubiquiti UniFi Switch Pro 48 PoE is a second-generation, enterprise-grade managed switch engineered for high-density networks that demand advanced Layer 2 and Layer 3 switching with substantial PoE power delivery. With 48 Gigabit Ethernet ports, high-speed 10G SFP+ uplinks, and an integrated touch display, it provides a scalable and resilient switching foundation for large UniFi deployments.
🔑 Key Features
48 Gigabit Ethernet RJ45 ports with auto-sensing 802.3at PoE+ and 802.3bt PoE support
High PoE power budget to support access points, cameras, phones, and high-power devices
Advanced Layer 2 and Layer 3 switching including inter-VLAN routing and static routing
Four 10G SFP+ ports for high-speed fibre uplinks and aggregation

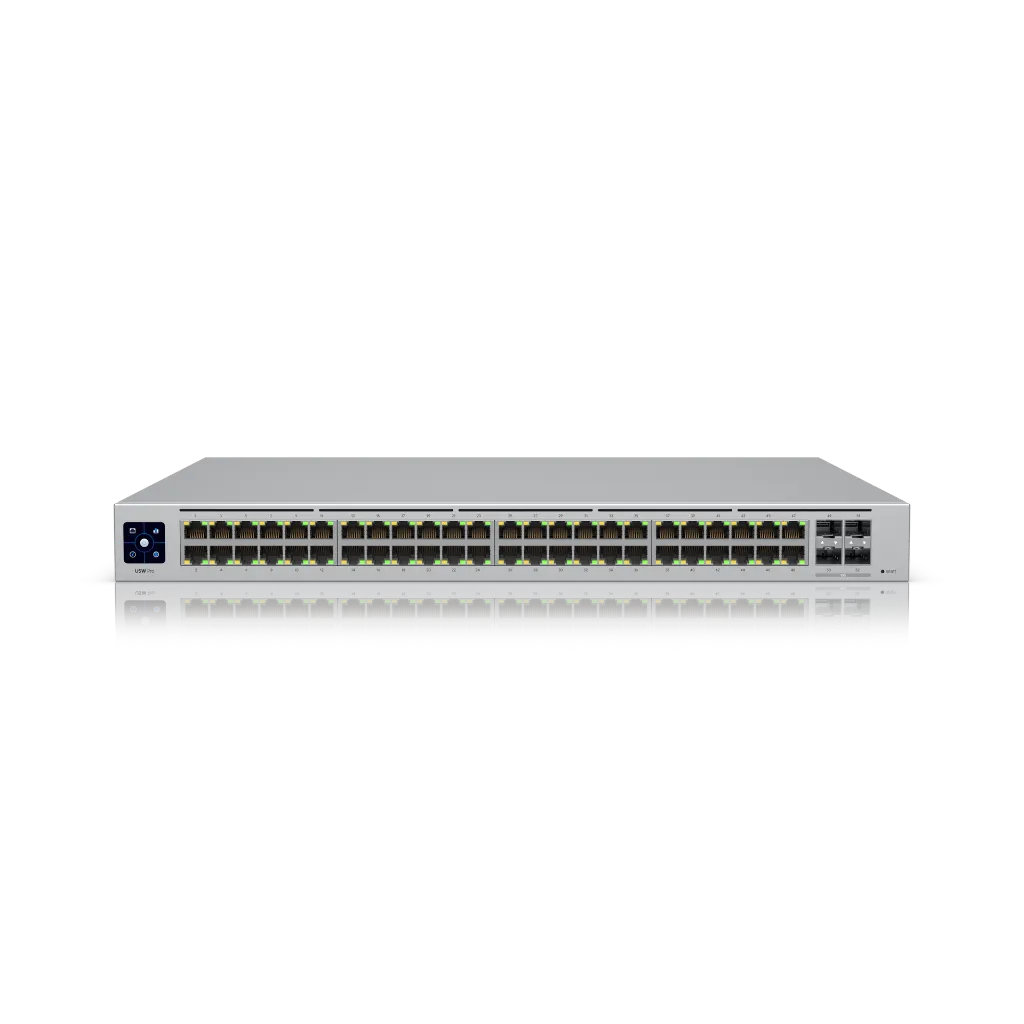

Front-panel touch display for real-time status, diagnostics, and port visibility
🛠Technical Specifications
Model: USW-PRO-48-POE (Gen2)

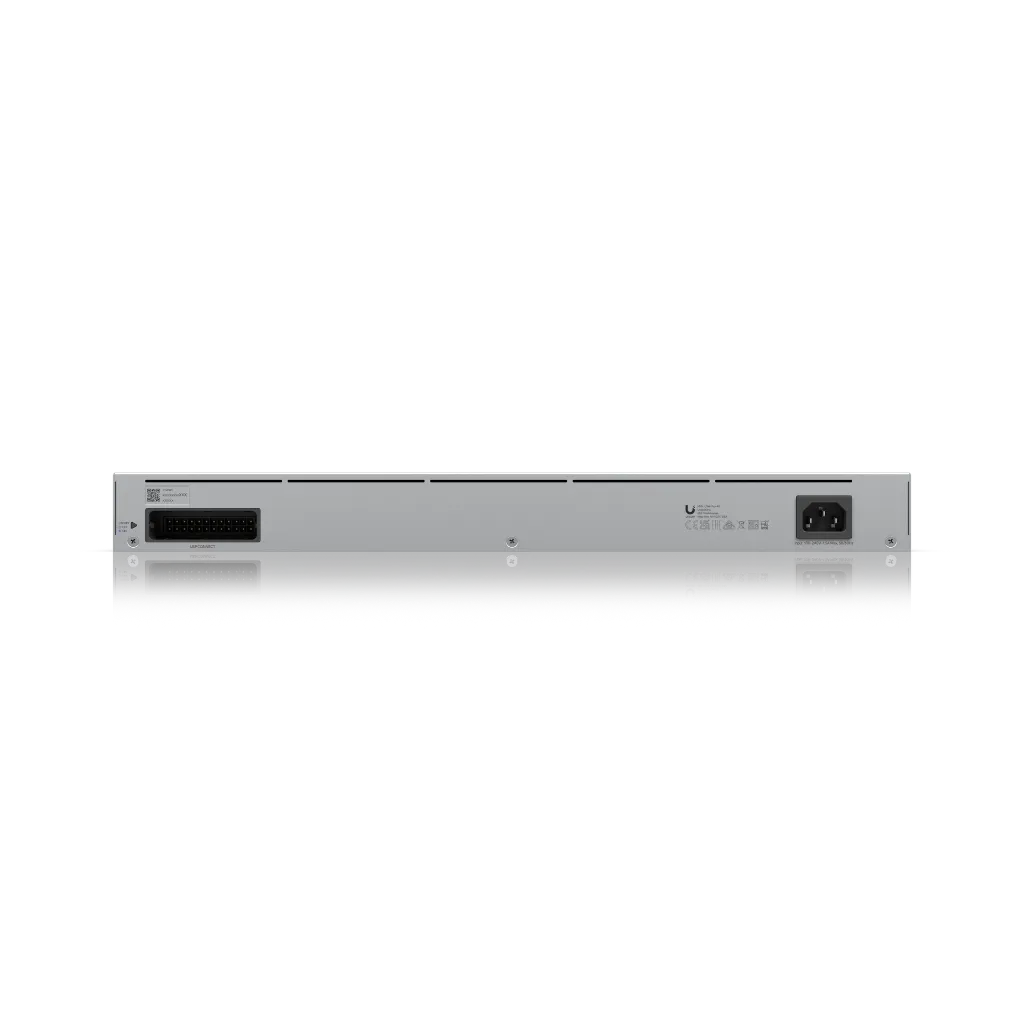

Voltage / Power: 100–240 V AC internal power supply
PoE Output: 48 × PoE ports supporting 802.3at PoE+ and 802.3bt PoE, total PoE budget 600 W
Switching Capacity: 176 Gbps
Forwarding Rate: 130.9 Mpps
Connections:
Dimensions: 442.4 × 285.6 × 43.7 MM (1U rackmount)
Weight: Approximately 7.8 kg
Material / Finish: Metal chassis with active cooling and integrated touch display

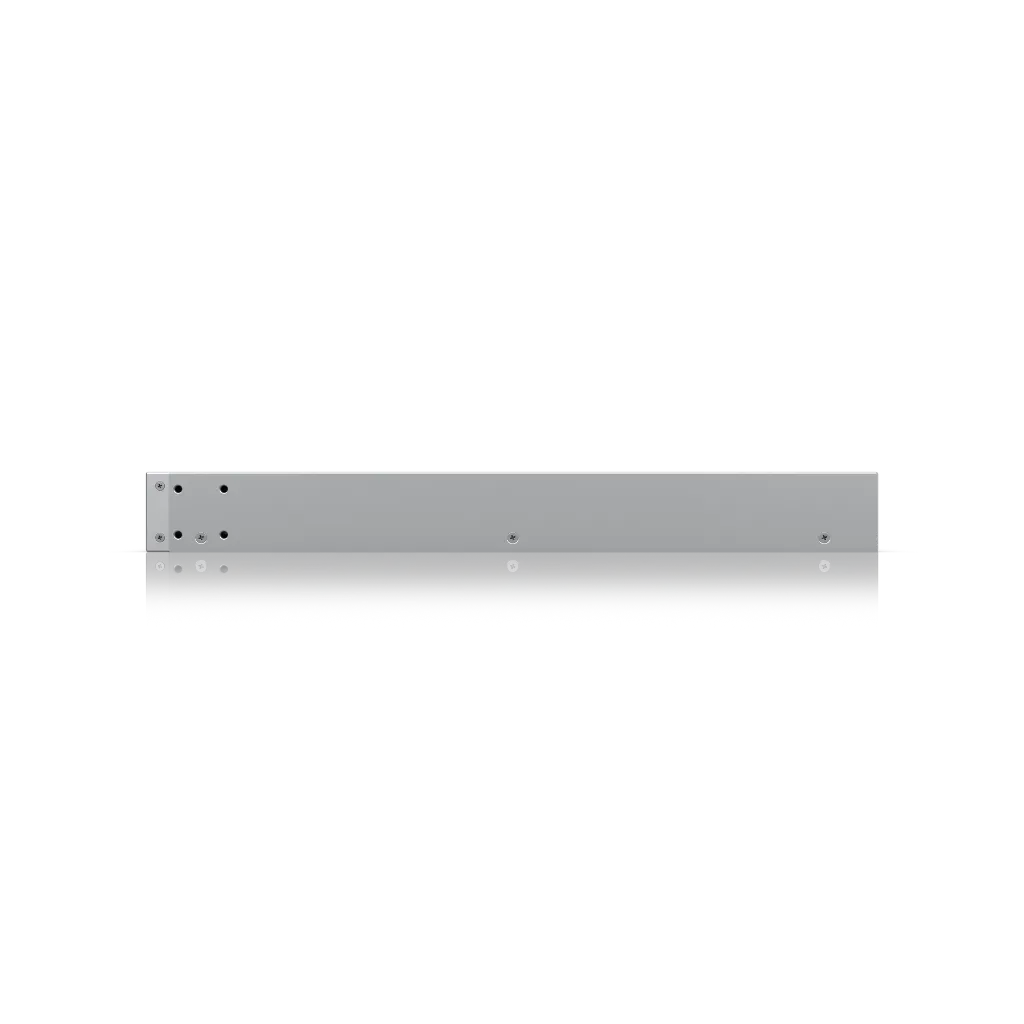

Mounting Style: Standard 19IN rackmount (rack ears included)
Environment: Indoor use; operating temperature 0 °C to 40 °C; humidity 10–90% non-condensing
🎯 Best Used For
Ideal for enterprise offices, campuses, warehouses, hospitality venues, and security-intensive deployments that require high port density, advanced Layer 3 switching, and large PoE capacity to power access points, cameras, and other networked devices at scale.
✅ Complementary Products (Same Brand)
UniFi gateways such as UDM-Pro, UDM-SE, or UDM Pro Max for advanced routing and security
UniFi Aggregation or Enterprise switches for 10G backbone and core expansion
UniFi WiFi access points such as U6 Pro, U6 Enterprise, or U7 Pro Max for high-density wireless coverage
UniFi Protect cameras for large-scale surveillance and security deployments
UniFi Access readers and controllers for integrated building access control
UniFi Redundant Power System (USP-RPS) for enhanced power resilience
UniFi SFP+ modules or DAC cables for high-speed fibre uplinks
UniFi rack systems and cable management accessories for clean, professional installations
The UniFi Switch Pro 48 PoE delivers enterprise-class switching, intelligent power delivery, and scalability, making it a cornerstone solution for large, high-demand UniFi network environments.
