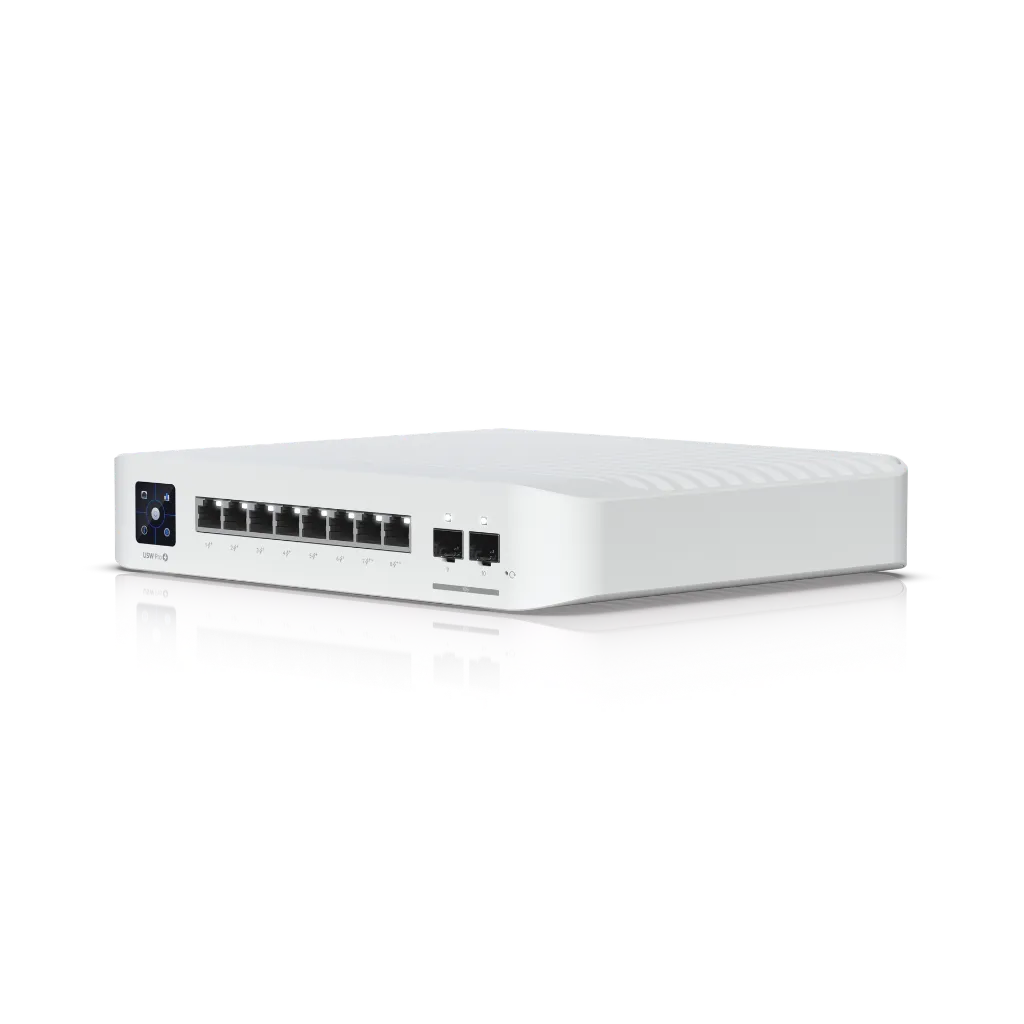

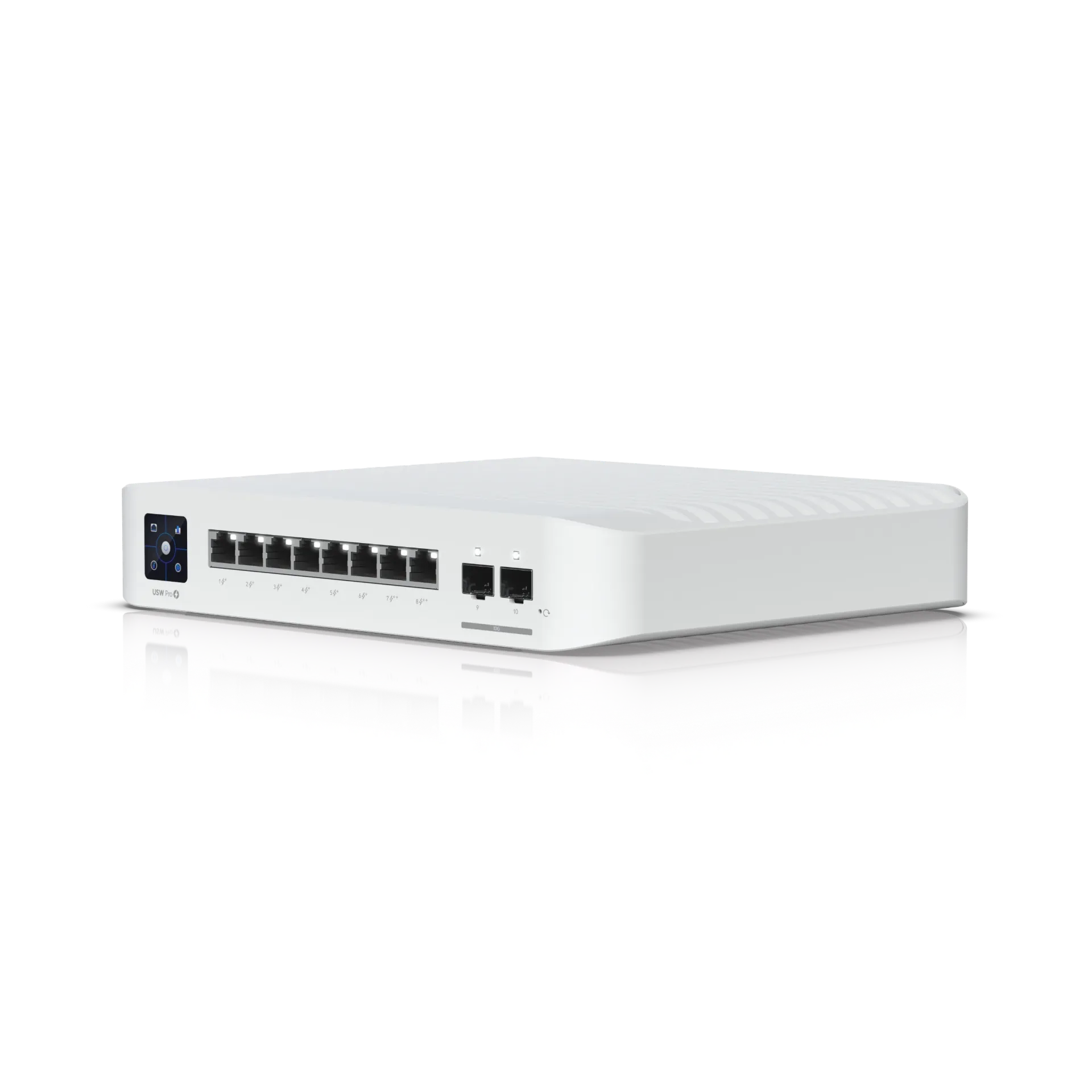

The Ubiquiti UniFi Switch Pro 8 PoE is a compact, enterprise-grade Layer 3 switch engineered to deliver high PoE power and multi-gig backbone connectivity in a small, wall-mountable form factor. Designed for demanding edge and distribution deployments, it combines intelligent power delivery, advanced switching features, and 10G uplinks—making it ideal for modern UniFi networks where space, performance, and reliability matter.
🔑 Key Features

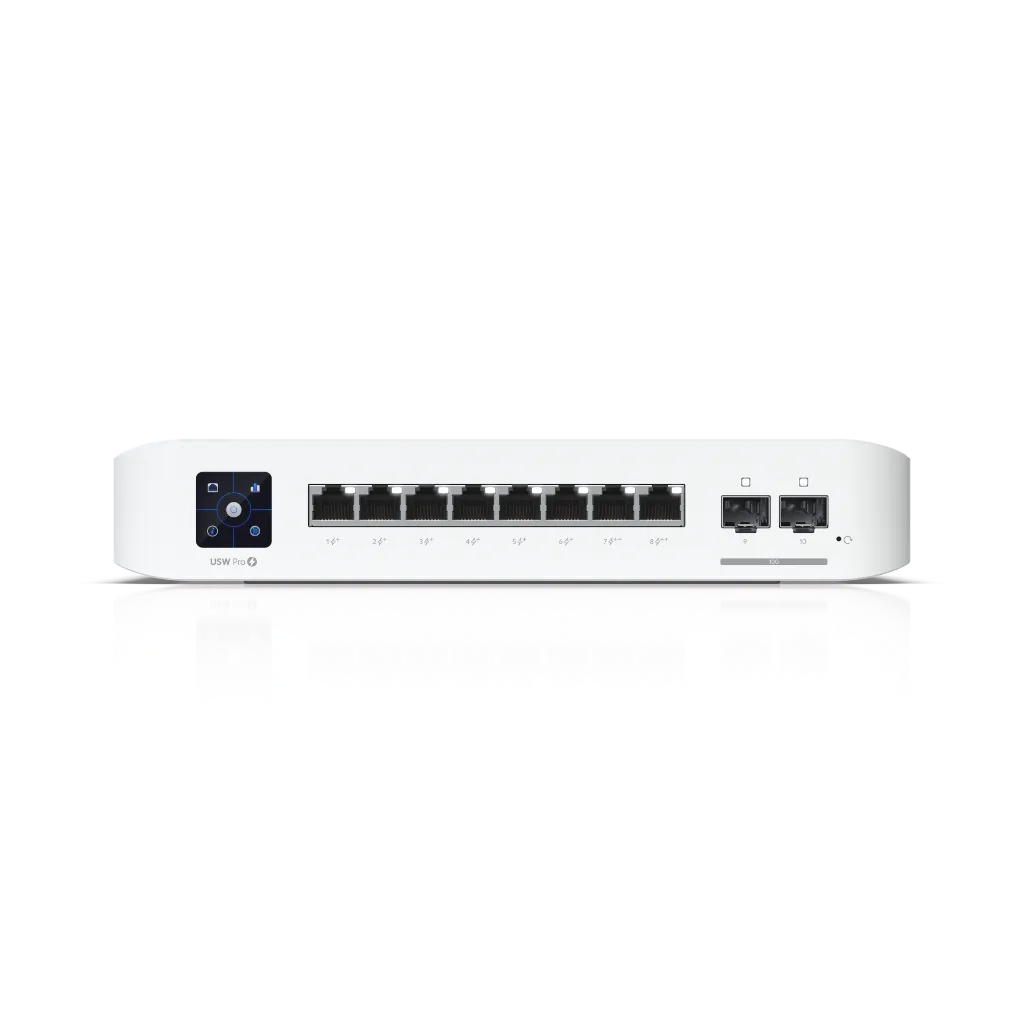

Eight Gigabit Ethernet ports with mixed PoE capability for flexible power delivery
Six 802.3at PoE+ ports and two 802.3bt PoE++ ports for high-power devices
Two 10G SFP+ ports for high-speed uplinks and aggregation
Advanced Layer 3 switching with inter-VLAN routing and static routing

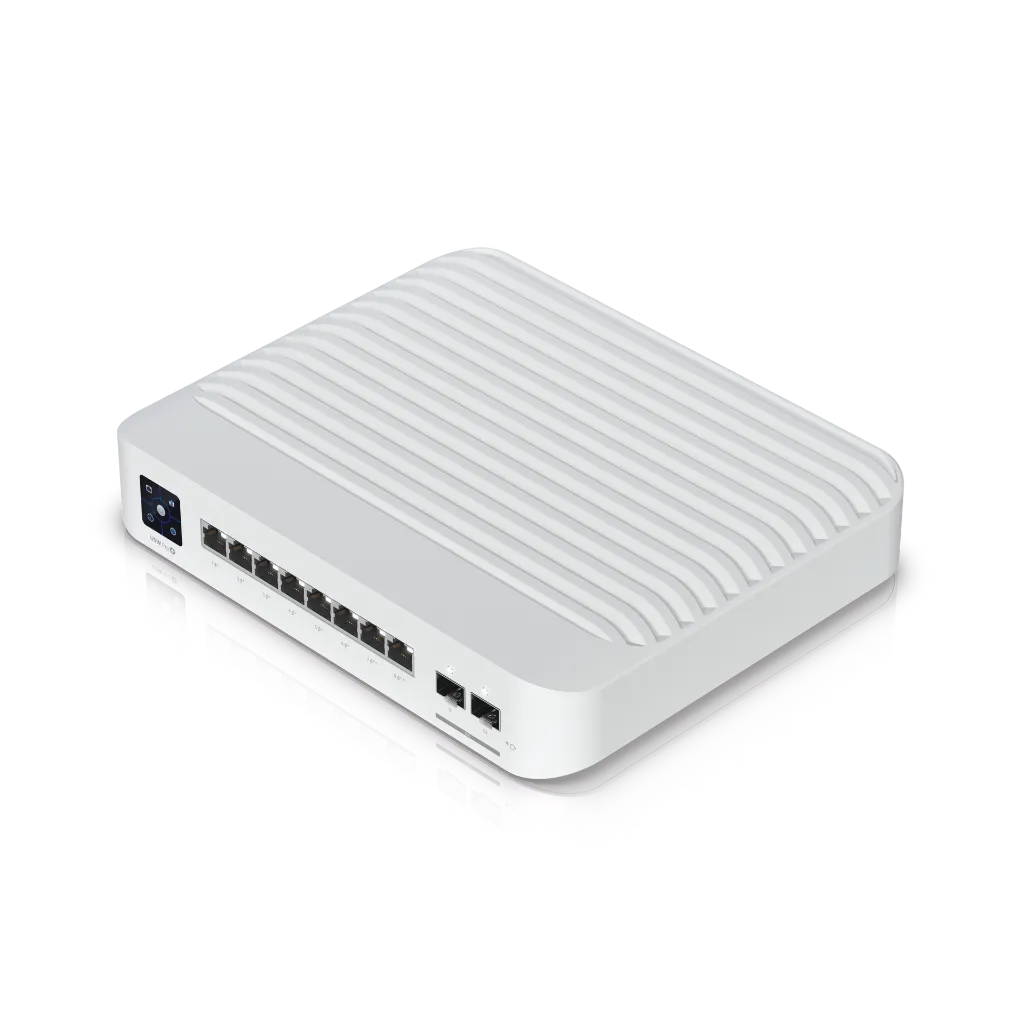

Compact, wall-mountable design suitable for edge or distributed installations
🛠 Technical Specifications
Model: USW-PRO-8-POE

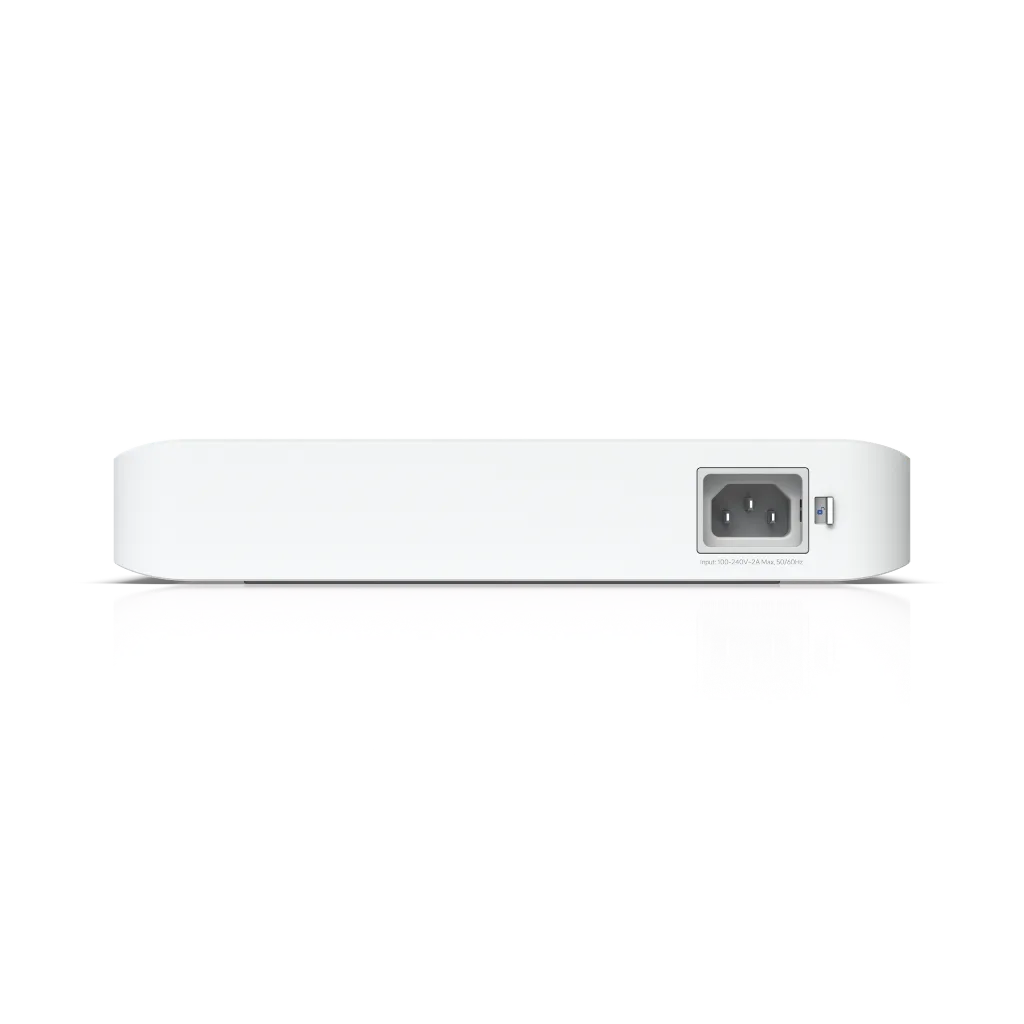

Voltage / Power: 100–240 V AC internal power supply
PoE Output:
6 × 802.3at PoE+ ports
2 × 802.3bt PoE++ ports
Total PoE budget 120 W
Switching Capacity: 96 Gbps
Forwarding Rate: 71.4 Mpps
Connections:
Dimensions: 210 × 95 × 32 MM
Material / Finish: Metal chassis with active cooling
Mounting Style: Wall mount or desktop placement (mounting hardware included)
Environment: Indoor use; operating temperature 0 °C to 40 °C; humidity 10–90% non-condensing
🎯 Best Used For
Ideal for offices, retail sites, classrooms, security installations, and distributed network edge deployments that require high PoE power for access points, cameras, and other demanding devices, along with 10G uplinks in a compact, non-rack environment.
✅ Complementary Products (Same Brand)
UniFi gateways such as UDM-Pro, UDM-SE, or UDM Pro Max for advanced routing and security
UniFi WiFi access points such as U6 Enterprise or U7 Pro Max for high-density wireless coverage
UniFi Protect cameras for PoE-powered surveillance deployments
UniFi Aggregation switches for scalable 10G backbone connectivity
UniFi SFP+ modules or DAC cables for high-speed uplinks
UniFi mounting accessories and cable management solutions for clean wall installations
The UniFi Switch Pro 8 PoE delivers enterprise-level switching and high-power PoE in a compact design, making it a versatile and powerful solution for modern UniFi network deployments where performance and flexibility are essential.
