UFI-UX7

The Ubiquiti UniFi Express 7 is a compact, high-performance cloud gateway with integrated WiFi 7 and 10G networking capabilities. Designed for modern network environments, it delivers next-generation wireless speed, robust security, and UniFi cloud management in a sleek desktop form factor.

🔑 Key Features

• WiFi 7 (802.11be) tri-band operation on 6 GHz, 5 GHz, and 2.4 GHz bands

• One 10G RJ45 WAN port and one 2.5G RJ45 LAN port for ultra-fast wired connections

• Supports UniFi Network Application with IDS/IPS, VPN, VLAN, and DPI features

• Mesh-capable design allowing use as a gateway or access point extension

• Compact and efficient design ideal for space-conscious environments

🛠 Technical Specifications

• Model: UX7

• Voltage / Power: 5 V DC / 5 A via USB-C, maximum power consumption 22 W

• Output / Sensitivity: WiFi throughput up to 5.7 Gbps (6 GHz), 4.3 Gbps (5 GHz), and 688 Mbps (2.4 GHz)

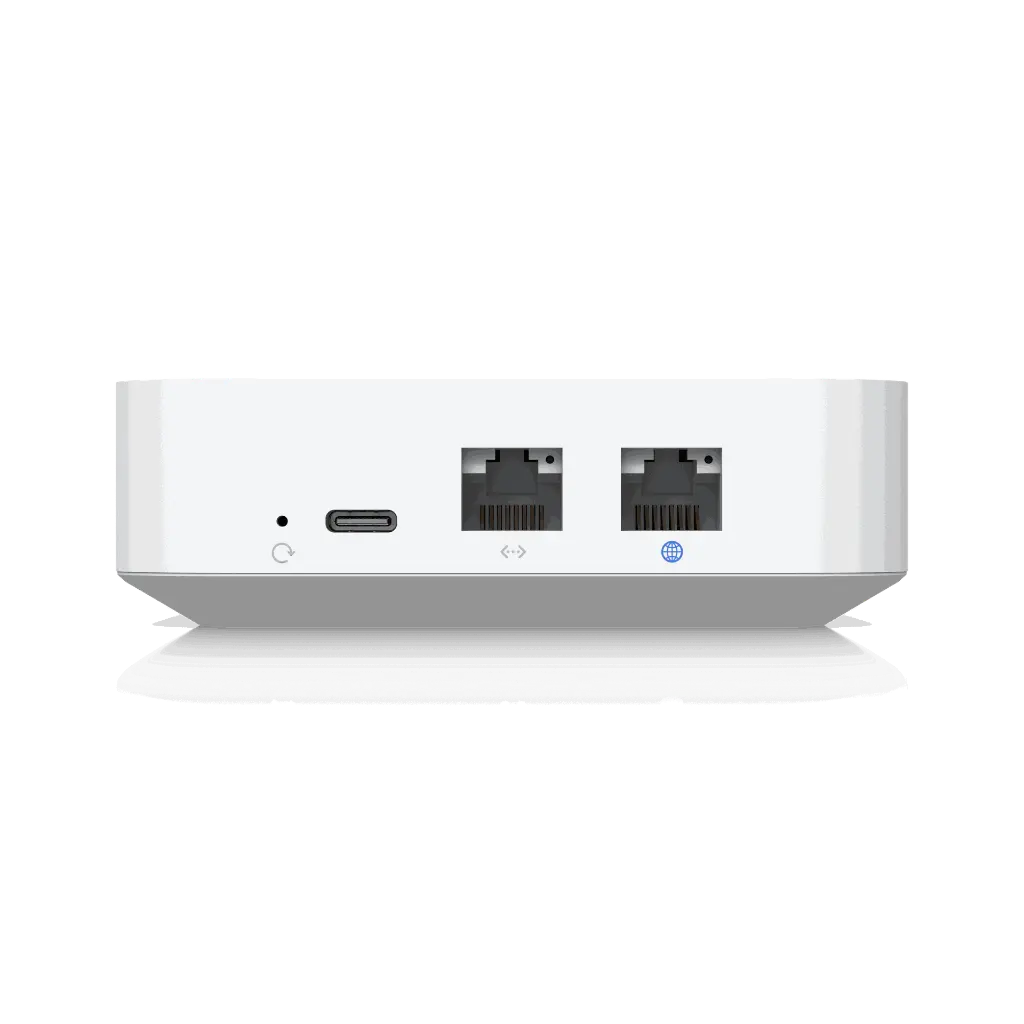

• Connections: One 10G RJ45 WAN port, one 2.5G RJ45 LAN port

• Dimensions: 117 × 117 × 42.5 MM

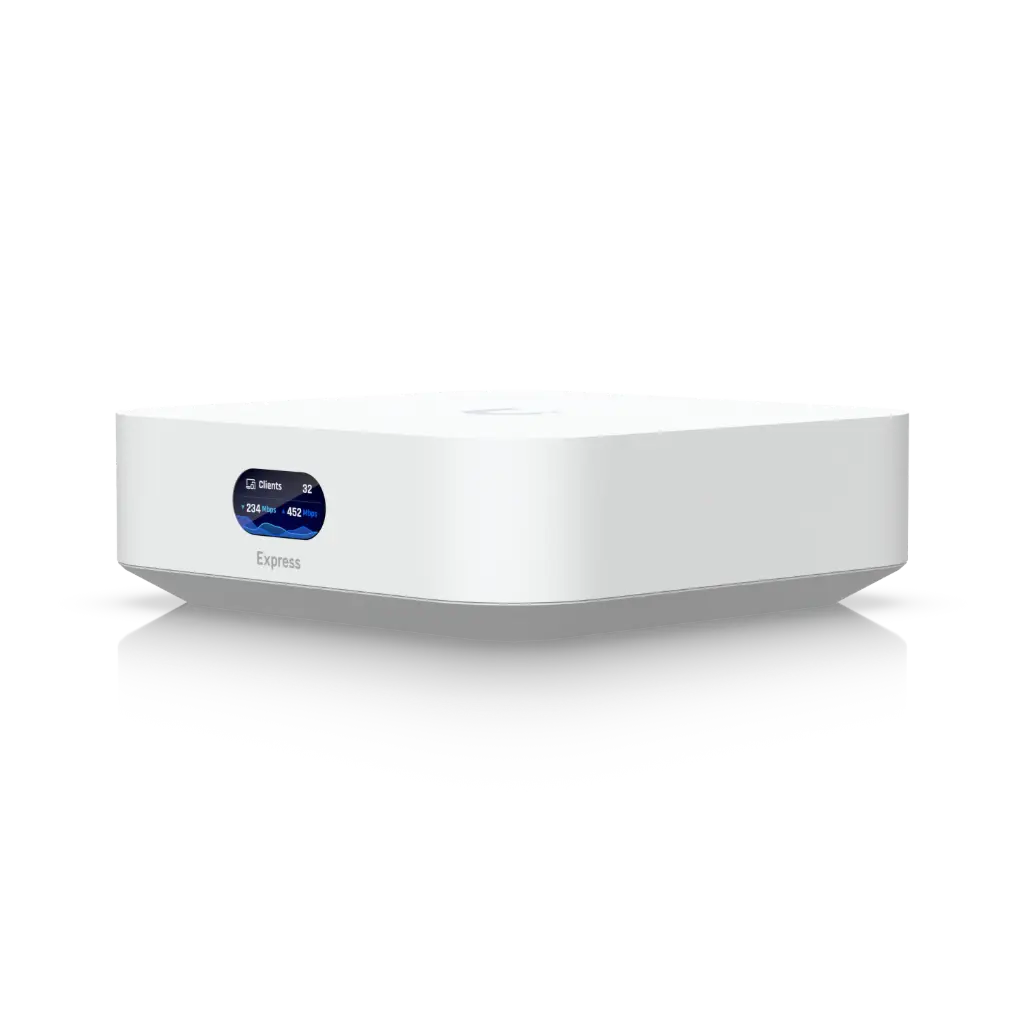

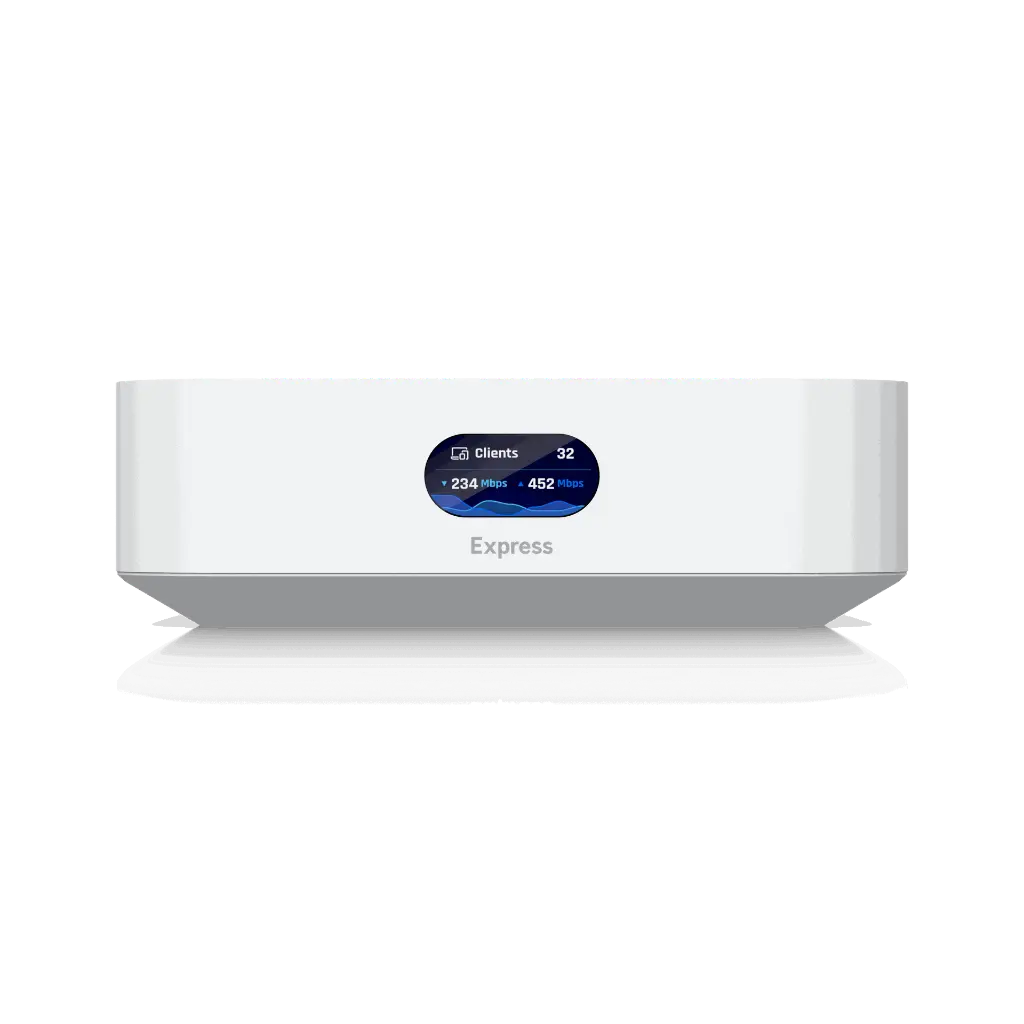

• Material / Finish: Polycarbonate enclosure with integrated display

• Mounting Style: Desktop placement

• Environment: Indoor use, operating temperature –10 °C to 40 °C

🎯 Best Used For

Ideal for small business offices, advanced home networks, and managed service environments requiring multi-gig connectivity, WiFi 7 performance, and secure cloud-managed networking in a compact form factor.
