ZX22-K9A

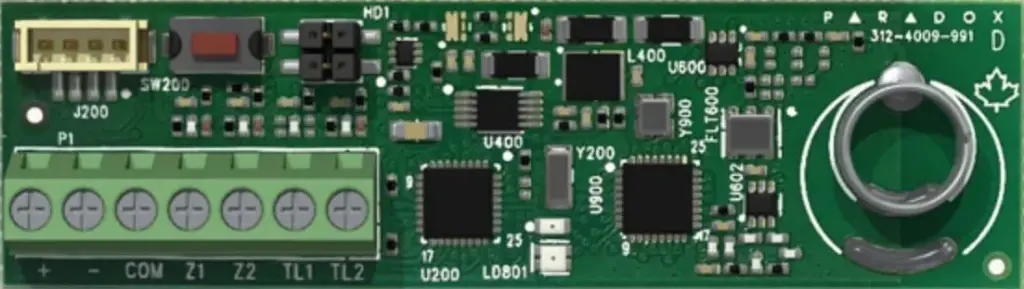

The Paradox ZX22-K9A is a wired expansion module that adds up to 22 additional hardwired zones to compatible Paradox alarm control panels. It is ideal for larger installations requiring expanded coverage with reliable, wired detection devices.
🔑 Key Features
Expands your system with 22 additional hardwired zones
LED indicators for each zone to simplify diagnostics
Built-in tamper protection for enhanced security
Designed for seamless integration with Paradox EVO and Digiplex systems
Compact and durable housing for professional installations
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | ZX22-K9A |
| Zones Supported | 22 wired zones |
| Compatibility | Paradox EVO & Digiplex control panels |
| LED Indicators | Zone status and fault diagnostics |
| Power Supply | 9–16 V DC |
| Current Consumption | ~60 mA typical |
| Tamper Protection | Built-in switch |
| Operating Temp. | 0°C to 50°C |
| Dimensions | Approx. 140 × 105 × 25 mm |
📦 Package Includes
1 × Paradox ZX22-K9A Zone Expansion Module
1 × Mounting hardware kit
1 × Installation guide
🎯 Best Used For
Large installations requiring multiple wired detectors
Commercial properties with extensive coverage needs
Upgrading EVO or Digiplex panels for scalability
Installers needing multi-zone expansion in one module
Specifications
| Brand | Paradox |
