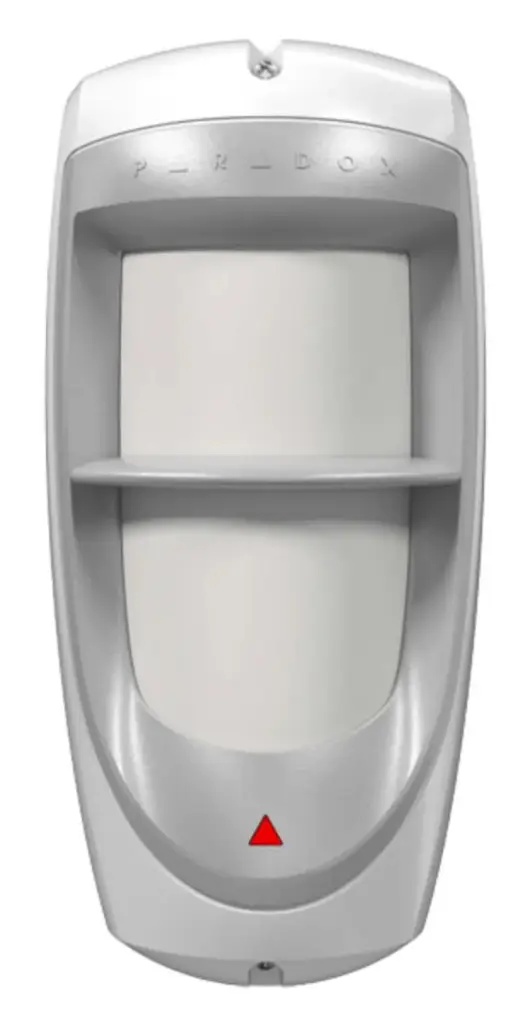

DG85

Paradox Outdoor Dual‑Optic PIR Sensor with PET Array Lens and heavy‑duty swivel bracket, designed for robust perimeter detection in demanding outdoor settings.

🔑 Key Features

• Dual‑optic PIR with PET array lens (immune to pets ≤ 40 kg)

• Includes heavy‑duty outdoor swivel bracket (SB85-P2C) for ceiling, wall, or corner mounting

• Supports two operational modes: encrypted EVO Bus or standard relay output

• Sealed, UV‑resistant housing with insect-proof optics

• Multi-level sensitivity adjustment

• Built-in tamper with bus and relay signalling

Comes with SB85‑P2C Heavy Duty Outdoor Swivel Mount Bracket and Supports: Two Operational Modes EVO Bus or Relay Output Operation

⚙️ Technical Specifications

• Detection Range: up to 11 m × 11 m

• Pet Immunity: up to 40 kg

• Operating Temp: –35 °C to +50 °C

• Housing Rating: sealed, UV‑protected; IP54 weather-resistant

• Power: 9–16 V DC via bus or relay circuit

• Output: Relay dry-contact; Bus communicates alarm and tamper data

• Sensitivity Control: DIP switches and trimpot or via module programming

• LED Indicators: Zone and status feedback

• Mounting: SB85‑P2C swivel bracket included

📌 Best Used For

• Expanding wired alarm perimeter detection on Paradox EVO192, MG5050+, SP65, and SP6000+control panels

• Outdoor residential, commercial, and agricultural sites

• Environments with pets and potential false alarms

• Installations needing both bus integration and independent relay output

• Flexible mounting across different surface orientations
