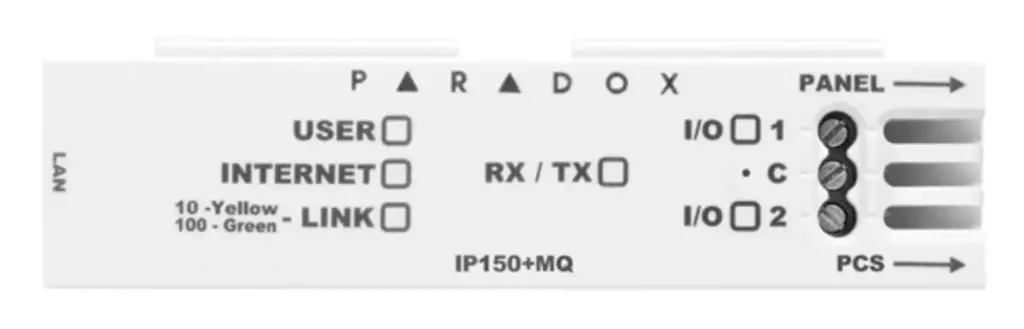

Paradox IP150+MQ‑MQTT Internet Module

The IP150+MQ-MQT is a modern network communication module for Paradox intrusion panels. It enhances remote operations by sending and receiving system events over Ethernet using MQTT, allowing fast, reliable, two-way integration with Paradox receivers and the BlueEye mobile app.

🔑 Key Features

• MQTT‑based internet communication for low-latency, reliable data exchange

• Sends system events in Contact ID format to IPC10 receivers

• Compatible with BlueEye and other Paradox mobile/desktop apps

• Supports remote firmware upgrades and downgrades

• Supervises up to two IPC10 receivers for redundancy

• Restores internet capability to panels manufactured after 2012

⚙️ Technical Specifications

• Connectivity: 10/100 Mbps Ethernet via RJ45

• Reporting Protocol: Contact ID via MQTT

• Power Supply: 13.8 VDC via panel serial bus

• Compatibility: Paradox SP6000+, SP65, EVO192, MG5050+ control panels

• Security: Optional static IP, DHCP support; TLS-based MQTT encryption

• Module Size: Compact PCB module for in-panel installation

• LED Indicators: Show network status, MQTT link, serial link, and I/O signals

🏢 Best Used For

• Upgrading Paradox panels to modern IP-based connectivity

• Remote monitoring and management via BlueEye or InsiteGold

• Secure reporting to central stations using IPC10 receivers

• Maintenance of legacy systems with added MQTT support

• Installations requiring firmware upgrades and event alerts over IP

Paradox IP150+MQ‑MQTT Internet Module brings legacy Paradox alarm systems firmly into modern networked operation with fast MQTT communication, system resilience, and app-based control—without replacing the entire security panel.
