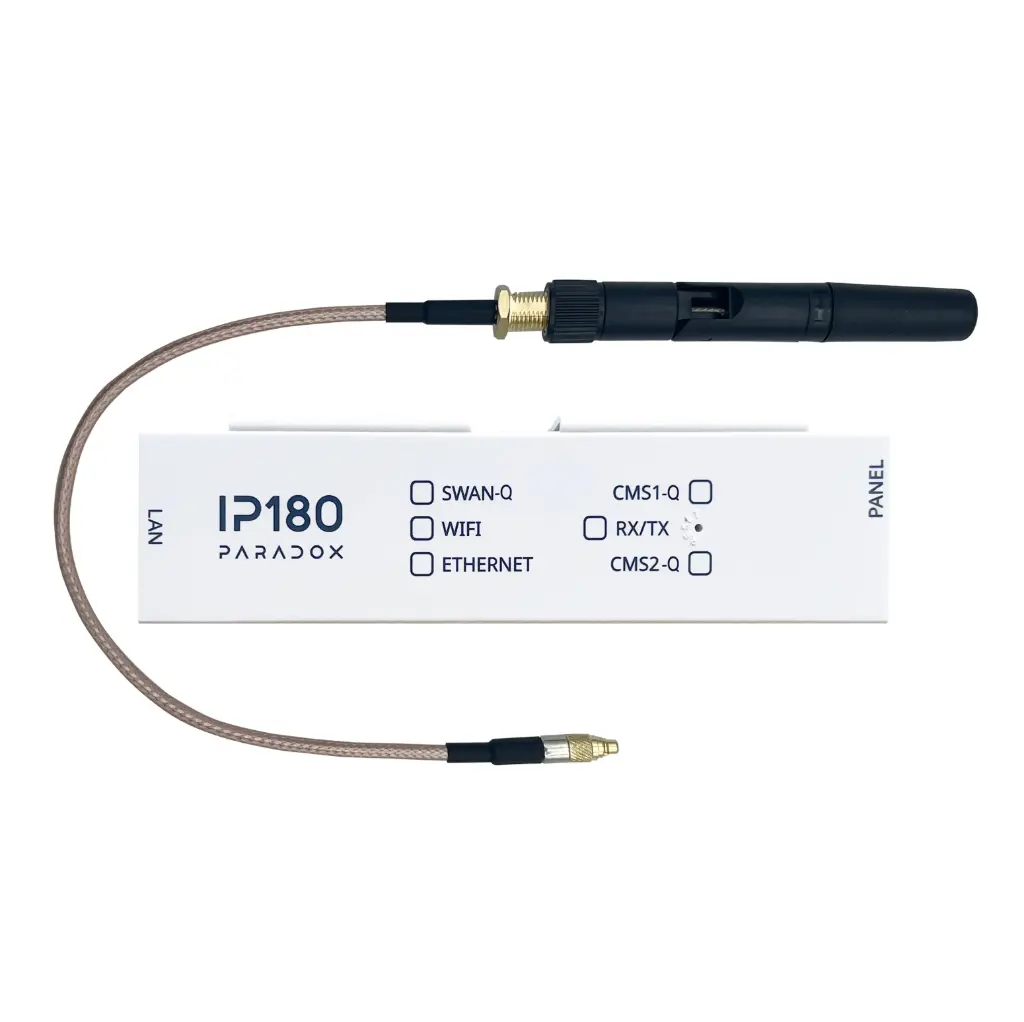

IP180-IPW

The IP180‑IPW is a modern network communication module for Paradox intrusion panels, offering reliable MQTT-based event reporting and remote control over Ethernet and Wi‑Fi. It brings legacy and newer panels online for app control, central monitoring, and firmware updates.

🔑 Key Features

• MQTT-Based Reporting: Sends real-time events via Contact ID over MQTT, supporting up to four IPC10 receivers

• Dual Connectivity: Connects via Ethernet and Wi‑Fi with automatic failover

• BlueEye App Support: Remote arm/disarm, status checks, and firmware updates through Paradox’s mobile and web interfaces

• Encrypted Communications: AES-128 encrypted connections to IPC10 receivers and MQTT server

• Simple Installation: Clip-on design with LEDs for status monitoring and included Wi‑Fi antenna kit

• Legacy Panel Compatibility: Works with Spectra+, EVO, MG+ panels made after 2012; not compatible with IPRS7/IPR512 receivers

⚙️ Technical Specifications

• Interfaces: 10/100 Mbps Ethernet RJ45; 2.4 GHz Wi‑Fi (B/G/N)

• Power: 10–16.5 V DC via panel serial port; current draw approx. 100 mA

• Physical Dimensions: 109 × 27 × 22 mm

• Operating Temp: –20 °C to +50 °C

• Certifications: CE, EN 50136 ATS‑5 Class II

• Compatibility: Paradox SP6000+, SP65, EVO192, MG5050+ control panels from 2012+, reporting to IPC10; BlueEye and BabyWare supported, no Insite Gold

• Event Reporting: Contact ID (MLR2‑DG or Ademco 685); up to four supervised IPC10 receivers

🏢 Best Used For

• Adding remote access and control to Paradox alarm panels via app or web

• Integrating legacy panels into IP-based central station monitoring

• Environments where Ethernet may fail—seamless Wi‑Fi failover ensures continuity

• Systems governed by Paradox security with encrypted, reliable communications

• Alarm installations needing remote firmware updates and status monitoring

Paradox IP180‑IPW Internet Module (MQTT) transforms legacy Paradox security systems into IP-capable, remotely-managed platforms—supporting modern monitoring, reporting, and device control without requiring a full panel upgrade.
