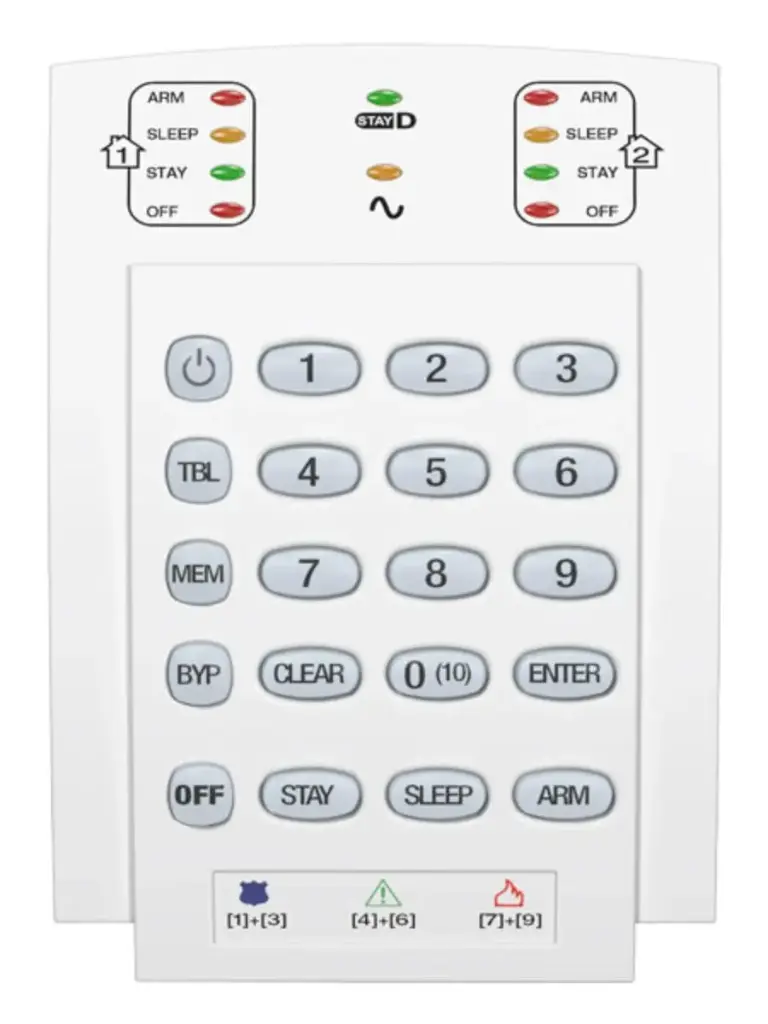

K10V

10-Zone Hardwired Vertical LED Keypad Module designed for seamless integration with Paradox MG5050+ and SP65, SP6000+ series panels. Combines simplicity, clear zone display, and fast access to essential security functions.

🔑 Key Features

• 10-zone LED display with illuminated keys

• Compatible with Paradox MG5050+, SP65, SP6000+ panels

• Supports StayD arming mode

• Dedicated Arm, Sleep, Stay, and Off status LEDs per partition

• 7 one-touch function buttons

• Panic alarm support: Fire, Police, Medical

• Adjustable keypad backlight

• Tamper-protected housing

⚙️ Technical Specifications

• Zones Displayed: 10 zones using keys 1–0

• One on-board zone input

• Chime Zones: Individually programmable per zone

• COM BUS Connection: 4-wire encrypted bus

• Backlight: Adjustable via [MEM] key

• LED Indicators: Status, Trouble (TBL), Memory (MEM), Bypass (BYP), AC

• Tamper Switch: Included

• Dimensions: Approx. 14.6 × 8.6 × 2.2CM

• Mounting: Vertical wall mount

• Operating Temperature: 0°C to 50°C

• Power Supply: Provided via control panel ComBus

📌 Best Used For

• Residential or commercial security systems

• Users preferring a simple LED keypad layout

• Installations requiring quick visual zone status

• Systems using StayD mode or chime notifications

• Sites needing dedicated panic alarm activation
