KEV-CSS-TM70

A premium hardwired EVO192 intrusion kit featuring the TM70 7-inch touchscreen keypad, dual siren units, and complete power and tamper protection hardware—offering intuitive control for large-scale security systems.

🔑 Key Features

• EVO192 control panel supporting up to 192 intrusion zones

• TM70 7-inch full-colour touchscreen keypad for advanced, user-friendly system management

• Combo siren/strobe and indoor top hat piezo for clear audible and visual intrusion alerts

• Tamper protection hardware to defend against interference

• AGM backup battery for reliable operation during power loss

• Modular EVO192  platform for scalable and future-ready system configurations

🛠 Technical Specifications

• Model: KEV-CSS-TM70 (EVO192 hardwired intrusion kit)

• Keypad: 1 × TM70 7-inch touchscreen keypad

• Compatibility: EVO192 platform

• Installation: Hardwired

• Power: 16VAC1500MPS/6 plug pack and SA12V7 AGM battery

• Alerts: WP08 top hat piezo siren and WP16 combo siren/strobe

• Scalability: Supports up to 32 access control doors (ACM12 per door) and 254 BUS modules

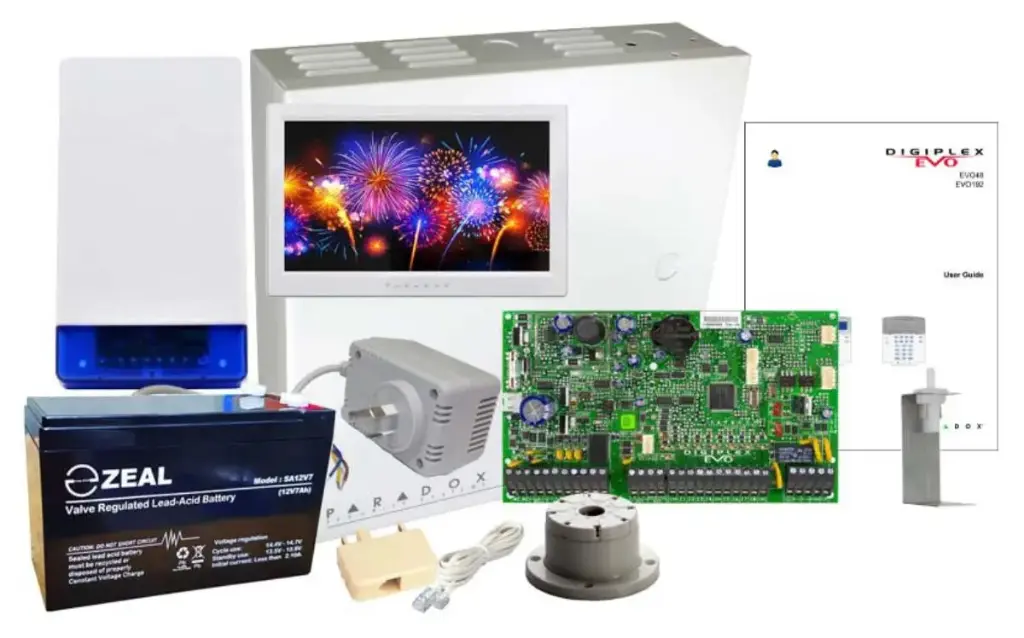

📦 Kit Includes

• 1 × EVO192 Digiplex EVO 192-Zone Control Panel Unlock Serial-NO Dialer-AUS with Battery Metal Box-NO

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 1 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 1 × 16VAC1500MPS/6 16VAC/1.5A Plug Pack Power Supply – 3 Wires

• 1 × WP08 Top Hat Piezo, 90mA, 105dB

• 1 × WP16 Combo Siren Strobe Flat Cover EOLR

• 1 × TM70 7-inch Touchscreen Keypad

• 1 × EVOU User Manual EVO (English)

  Supports up to: 32 Access Control Doors (requires ACM12 per door)

🛠️ Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your EVO192 system. Installation includes:

• On-site mounting and wiring of all components

• System programming tailored to your site layout

• Integration with existing security infrastructure

• Full operational testing and commissioning

• Training for daily operation and maintenance

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at the checkout for 10% off kit orders

🎯 Best Used For

• Large-scale residential, commercial, or industrial security installations

• Sites requiring a larger touchscreen interface for easier navigation and control

• Centralised or multi-user security management environments

• Scalable systems that may need future expansion and feature upgrades
