KEV-SCO-TM70

A professional EVO192 intrusion kit featuring the TM70 7-inch touchscreen keypad, a weather-resistant siren cover kit with strobe, essential power components, and tamper protection—designed for advanced visual control, intuitive operation, and premium system management.

🔑 Key Features

• EVO192 control panel supporting up to 192 intrusion zones

• TM70 7-inch full-colour touchscreen keypad with high-resolution display

• Siren cover kit with blue strobe, combo siren/speaker, tamper switch, UV-stabilised cover, and indoor top hat piezo

• Tamper switch and bracket for added system protection

• AGM backup battery for reliable operation during power outages

• Modular EVO192 platform for scalable and upgradeable security configurations

🛠 Technical Specifications

• Model: KEV-SCO-TM70 (EVO-192 hardwired intrusion kit)

• Keypad: TM70 7-inch full-colour touchscreen keypad

• Detectors: None supplied (Base Kit with keypad)

• Compatibility: EVO-192 platform

• Installation: Hardwired with wireless device integration capability  (with Addon Module RTX3)

• Power: 16VAC1500MPS/6 plug pack and SA12V7 AGM battery

• Alerts: SC03/CO/TOP siren/strobe kit and indoor top hat piezo

• Scalability: Supports up to 32 access control doors (requires ACM12 per door) and 254 BUS modules

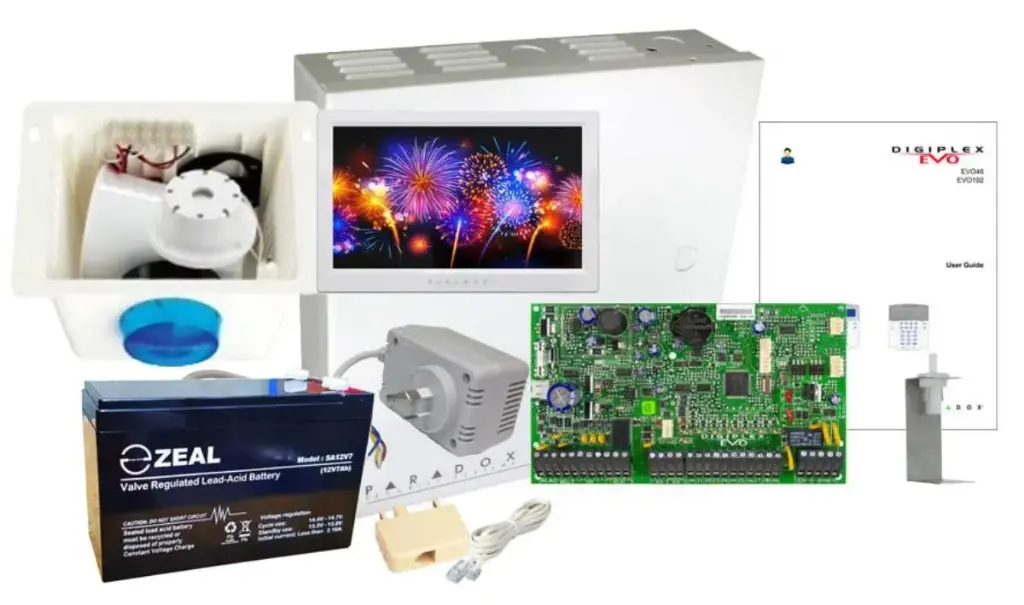

📦 Kit Includes

• 1 × EVO192 Digiplex EVO 192-Zone Control Panel Unlock Serial-NO Dialer-AUS with Battery Metal Box-NO

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 1 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 1 × 16VAC1500MPS/6 16VAC/1.5A Plug Pack Power Supply – 3 Wires

• 1 × SC03/CO/TOP Siren Cover Kit with Blue Strobe, Combo Siren/Speaker, Tamper Switch, UV-Stabilised Cover (Pre-Wired) and Indoor Top Hat Piezo

• 1 × TM70 7-inch Full-Colour Touchscreen Keypad

• 1 × EVOU User Manual EVO (English) Supports up to: 32 Access Control Doors (requires ACM12 per door) and 254 BUS Modules

🛠️ Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all components

• System programming tailored to your site layout

• Integration with existing security infrastructure

• Full operational testing and commissioning

• Training for daily operation and maintenance

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• High-end residential or commercial properties needing a premium control interface

• Sites that benefit from a large, detailed touchscreen for system monitoring

• Installations where detectors will be added separately for tailored coverage

• Locations needing clear visual feedback and strong audible intrusion alerts
