KEV-SWAN

PRXKEV-SWAN

A premium EVO192 access control and intrusion detection kit featuring a TM70 7-inch touchscreen keypad, ACM12 access control module, IP150+MQ internet module, motion detection, siren solutions, and proximity card access—ideal for sites requiring both security monitoring and integrated door control.

🔑 Key Features

• EVO192 control panel supporting up to 192 intrusion zones

• Integrated access control with ACM12 module and proximity card reader

• TM70 7-inch full-colour touchscreen keypad for easy operation

• IP150+MQ internet module for remote system connectivity and management

• DG65+ Dual motion detectors for reliable movement detection

• Comprehensive audible and visual alerts via combo siren, strobe, and indoor piezo

• Ready for expansion with scalable access control and BUS modules

🛠 Technical Specifications

• Model: PRXKEV-SWAN (EVO192 intrusion & access control kit)

• Keypad: TM70 7-inch full-colour touchscreen keypad (white)

• Access Control: ACM12 module, indoor/outdoor card reader & keypad, 4 × proximity cards

• Detectors: 2 × DG65+ quad element digital motion detectors

• Connectivity: IP150+MQ internet module (legacy)

• Alerts: WP16 combo siren/strobe and WP08 indoor top hat piezo

• Power: 2 × 16VAC1500MPS/6 plug packs, 2 × SA12V7 AGM batteries

• Scalability: Supports up to 32 access control doors (requires ACM12 per door) and 254 BUS modules

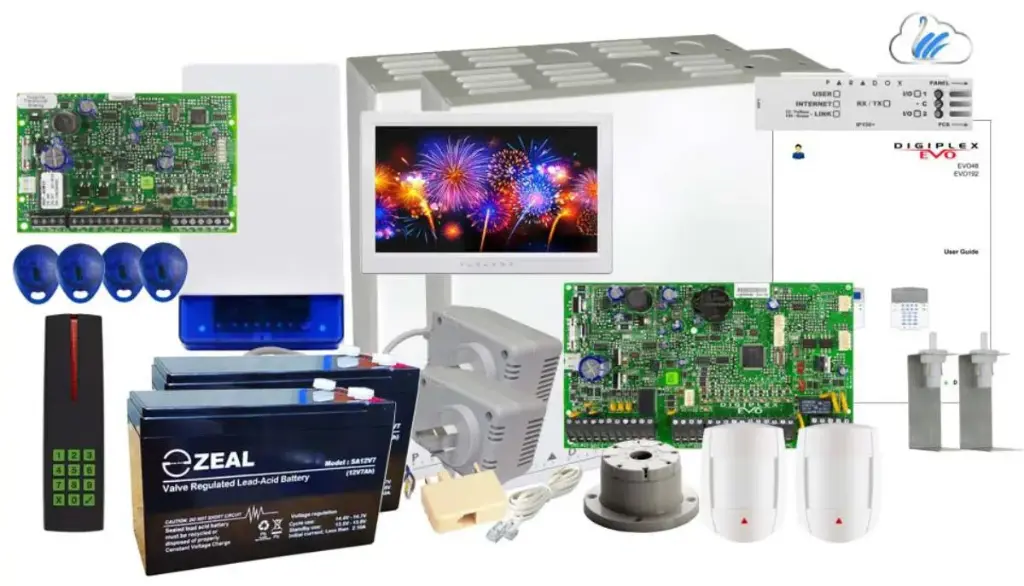

📦 Kit Includes

• 1 × EVO192 Digiplex EVO 192-Zone Control Panel Unlock Serial-NO Dialer-AUS with Battery Metal Box-NO

• 2 × 2780000033 Metal Box 11x11x3

• 2 × 2502302000 Tamper Switch

• 2 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 2 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 2 × 16VAC1500MPS/6 16VAC/1.5A Plug Pack Power Supply – 3 Wires

• 1 × WP08 Top Hat Piezo, 90mA, 105dB

• 1 × WP16 Combo Siren Strobe Flat Cover EOLR

• 2 × DG65+ Digigard Quad Element Digital Motion Detector

• 1 × IP150+MQ MQ‑MQTT Internet Module

• 1 × ACM12  4-Wire Access Control Module Metal Box-NO

• 1 × R915 Indoor/Outdoor Access Card Reader and Keypad, Black

• 4 × C704 Proximity Card Mini Card Number-NO SPECIFIC NUMBER

• 1 × TM70 7-inch Touchscreen Keypad, White, Multi-Language

• 1 × EVOU User Manual EVO (English) Supports up to: 32 Access Control Doors (requires ACM12 per door) and 254 BUS Modules

🛠️ Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all components

• System programming tailored to your site layout

• Integration of intrusion detection and access control

• Full operational testing and commissioning

• Training for daily operation and maintenance

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Commercial or high-security sites requiring both access control and intrusion detection

• Facilities needing remote monitoring via internet connectivity

• Multi-door environments where card-based access is required

• Sites demanding integrated siren, strobe, and keypad alerts for comprehensive security
