KMG-DG75-CSS-K10V

A Paradox Magellan MG hybrid security kit featuring the MG5050+ wireless transceiver control panel, K10V 10-zone LED keypad, and DG75+ dual-element PIR motion detectors. Built for reliable indoor detection with pet immunity and the flexibility to expand wirelessly.

🔑 Key Features

• MG5050+ wireless transceiver control panel—supports up to 32 zones and 2 areas

• K10V LED keypad with 10-zone display for simple operation and quick arming/disarming

• DG75+ dual-element PIR motion detectors with pet immunity up to 40 kg

• Hybrid system design—wired stability with wireless expansion capability

• Siren and strobe components for immediate visual and audible alerts

🛠 Technical Specifications

• Model: KMG-DG75-CSS-K10V (MG5050+ hybrid control kit with K10V keypad and DG75+ detectors)

• Control Panel: MG5050+ (Magellan 32-Zone Wireless Transceiver; 433 MHz, regular antenna)

• Keypad: K10V (LED keypad, 10-zone display)

• Detectors: 2 × DG75+ (Dual-element PIR motion detectors, pet immune up to 40 kg)

• Power: 16VAC1500MPS/6 (16 VAC, 1.5 A plug pack) and SA12V7 (12 VDC/7 Ah AGM battery)

• Alerts: WP08 (Top Hat Piezo Siren, 105 dB) and WP16 (Combo Siren Strobe, flat cover, EOL resistor)

• Enclosure: 2780000033 metal box with tamper switch 2502302000 and bracket 2781030000

• Connectivity: LC0280 telephone lead with 606 socket, 2 m cord

• Documentation: MGUM user manual MG series

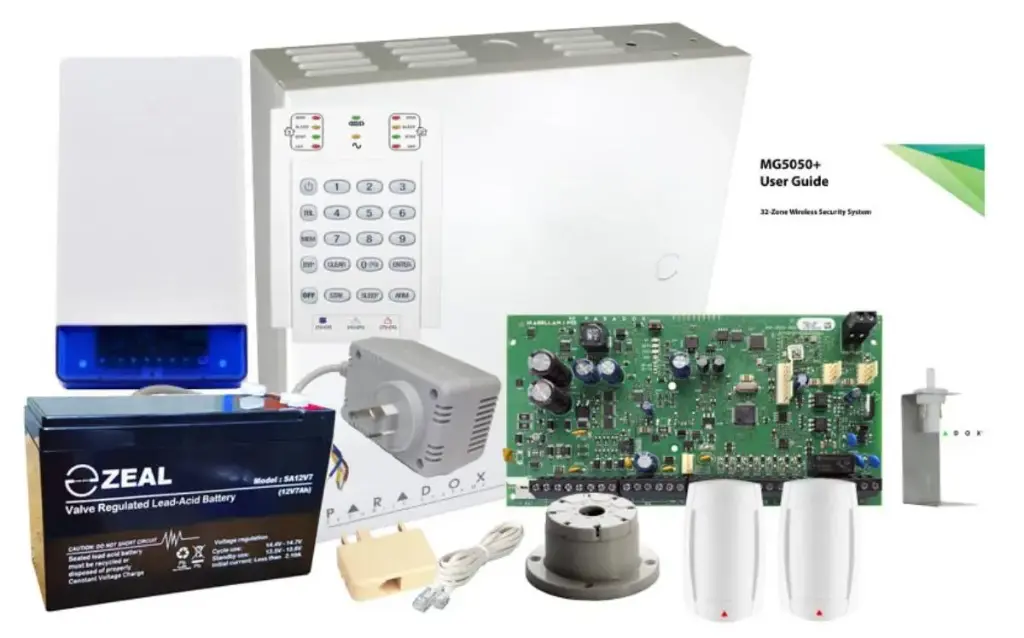

📦 Kit Includes

• 1 × MG5050+ Magellan 32-Zone Wireless Transceiver Control Panel

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 1 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 1 × WP08 Top Hat Piezo, 90mA, 105dB

• 1 × WP16 Combo Siren Strobe Flat Cover EOLR

• 2 × DG75+ Dual-Element PIR Motion Detectors, Pet Immune (up to 40 kg)

• 1 × K10V  LED Keypad (10-zone display)

• 1 × MGUM User Manual (EN) Supports up to 32 Access Control Doors (ACM12 per door) and 254 BUS Modules

🛠 Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all kit components

• Keypad installation and configuration

• System programming and wireless setup for MG devices

• Full operational testing, commissioning, and user training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Homes and small businesses with pets needing reliable motion detection without false triggers

• Security setups requiring simple keypad operation and quick status checks

• Installations combining wired reliability with wireless expansion capability
